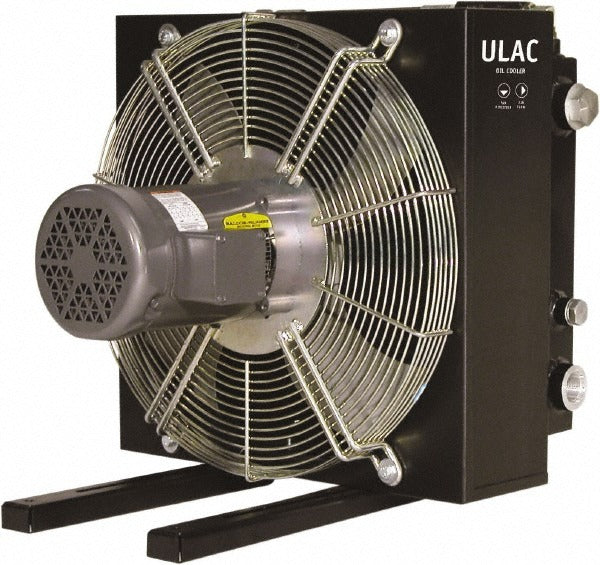

Parker ULAC-007BM000SW Liquid-to-air Heat Exchanger

Product Description

The PARKER ULAC-007BM000SW is a liquid-to-air aluminum brazed heat exchanger designed for process equipment cooling applications. It transfers heat from circulating fluid to ambient air using a single fan mount configuration, making it a direct-fit solution for industrial oil cooling and ethylene glycol/water mixture cooling circuits. The unit handles up to 510 BTU/h of heat rejection and is rated for a maximum operating temperature of 250 degrees F and a maximum working pressure of 300 psi. Connections are 1-inch SAE O-Ring Boss (ORB) threaded fittings. HVAC and industrial mechanical technicians typically install this unit as part of a dedicated fluid cooling loop.

This heat exchanger is suited for light industrial and process equipment applications where hydraulic oil or glycol-water coolant must be maintained within a safe operating temperature range. Its compact aluminum brazed core construction keeps weight low while providing durable fluid circuit performance. The steel outer style housing supports the single fan mounting point, allowing integration with a dedicated fan assembly in fixed or mobile equipment cooling systems. It is not designed for refrigerant service.

Key Features

• Liquid-to-air heat rejection rated at 510 BTU/h
• Maximum operating temperature of 250 degrees F
• Maximum working pressure of 300 psi
• 1-inch SAE O-Ring Boss threaded connections for secure, leak-resistant hookup
• Aluminum brazed fluid circuit construction for corrosion resistance and heat transfer efficiency
• Single fan mount point for straightforward fan assembly integration
• Compatible cooling fluids include oils and ethylene glycol/water mixtures

Compatibility

Designed for process equipment cooling circuits using oils or ethylene glycol/water mixtures. Compatible with systems using 1-inch SAE O-Ring Boss threaded connections and operating within 300 psi and 250 degrees F limits.

Installation Notes

Installation is typically performed by industrial mechanical technicians or licensed HVAC technicians familiar with fluid cooling systems. Depressurize and drain the cooling circuit fully before disconnecting or installing any heat exchanger. Torque SAE ORB fittings to the fitting manufacturer's specifications and inspect for leaks before returning the system to service. Verify that the fan assembly and airflow direction are compatible with the unit's intended orientation before final mounting.
