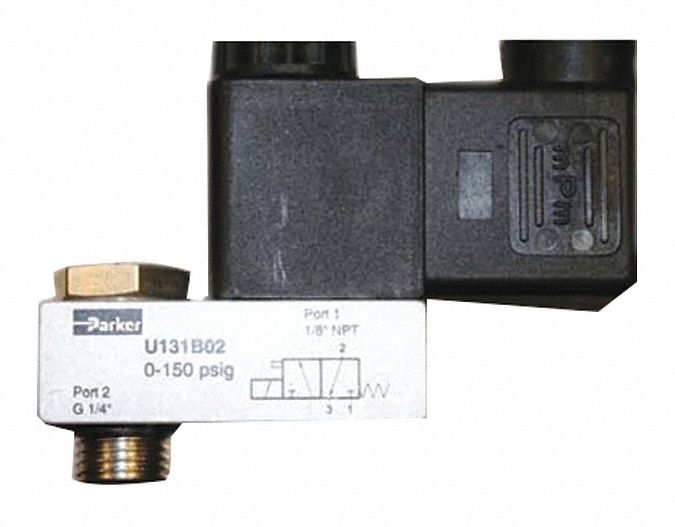

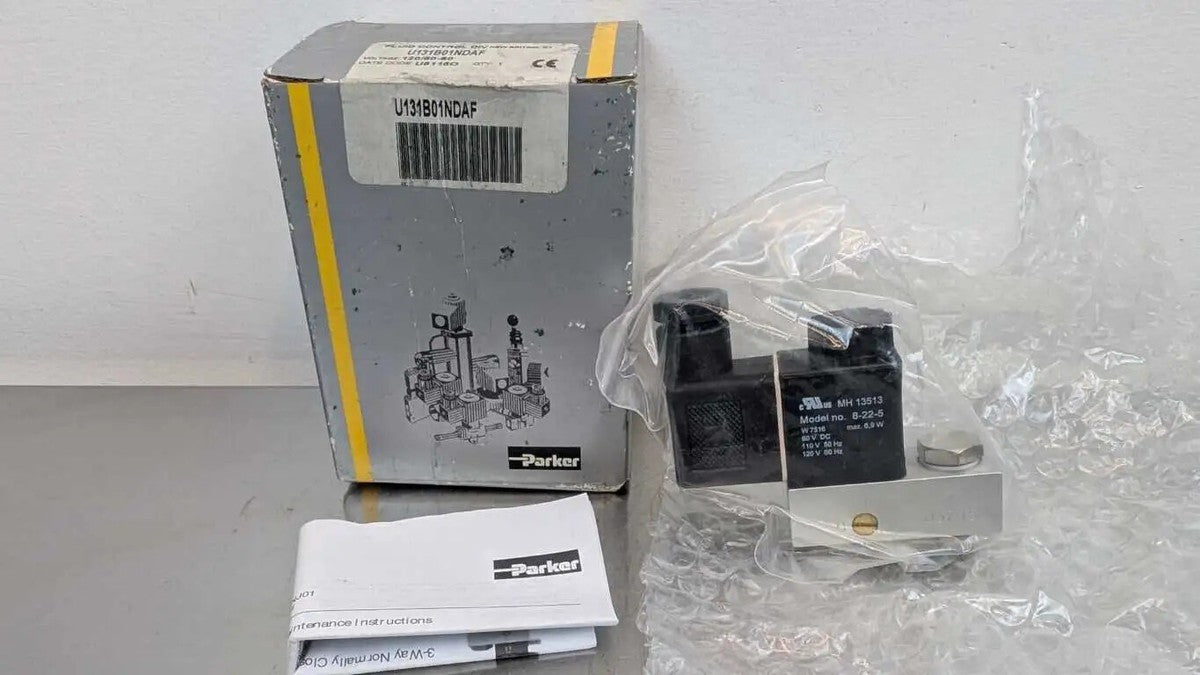

PARKER U131B01NDAF Solenoid Valve 3-Way Normally Closed

Product Description

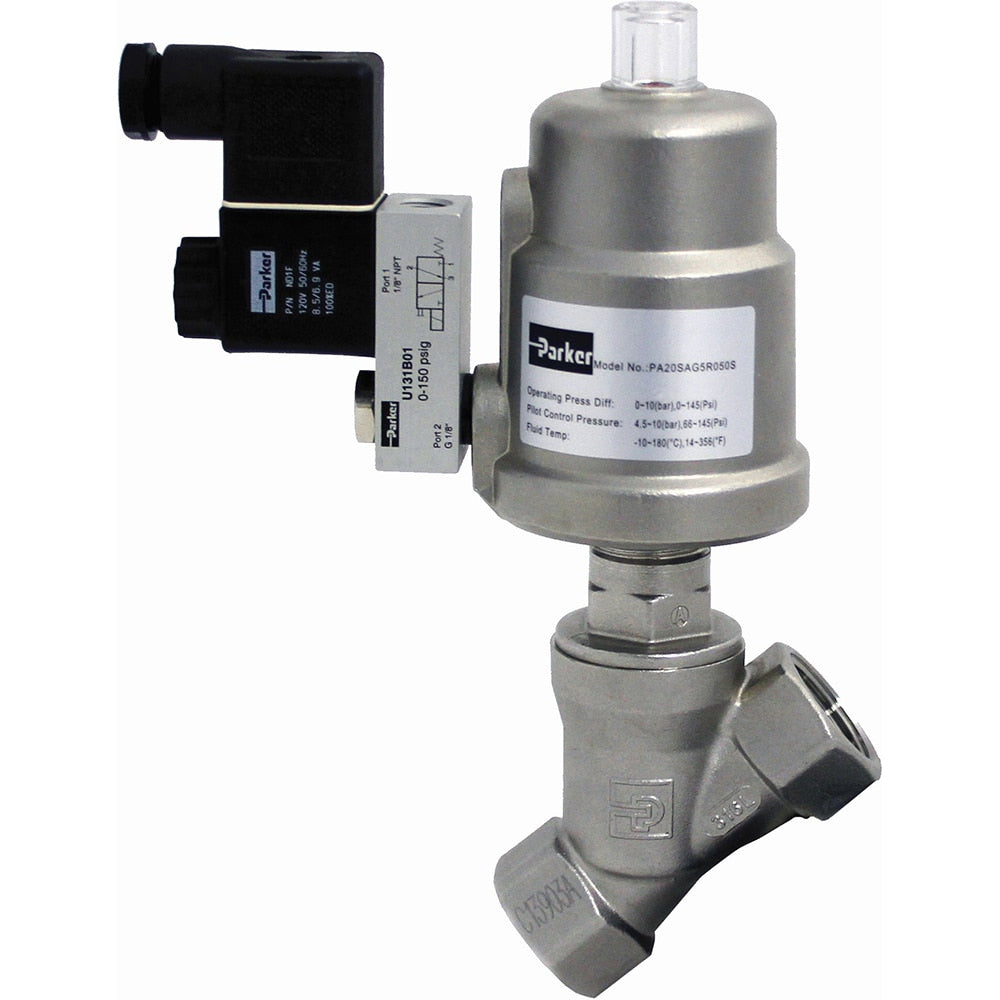

The PARKER U131B01NDAF is a three-way, normally closed solenoid valve that effectively manages fluid flow in various systems. This valve is made from anodized aluminum, ensuring a long lifespan and resistance to corrosion. It is designed for applications in industries such as automotive, HVAC, and other sectors requiring reliable fluid control. This valve can be mounted directly to PA Series angle body valves using a banjo bolt and comes with a DIN Form 'B' coil and strain relief connector. It operates on one hundred twenty volts AC and has a port size of one eighth inch NPT.

• Anodized aluminum body for strength and longevity.
• Configured for direct banjo bolt mounting.
• Operates efficiently at 120 VAC.

Product Highlights

Product Information

Standard Information

• MPN: U131B01NDAF
• Valve Type: 3-Way Normally Closed

Technical Specifications

• Port Size: 1/8 inch NPT
• Voltage: 120 VAC
• Coil Type: Type F
• Cv Rating: 0.050
• Maximum Working Pressure: 150 psi
• Minimum Operating Pressure Differential: 0 psi
• Seal Material: FKM Fluorocarbon
• Type: IP 69; Wet Location
