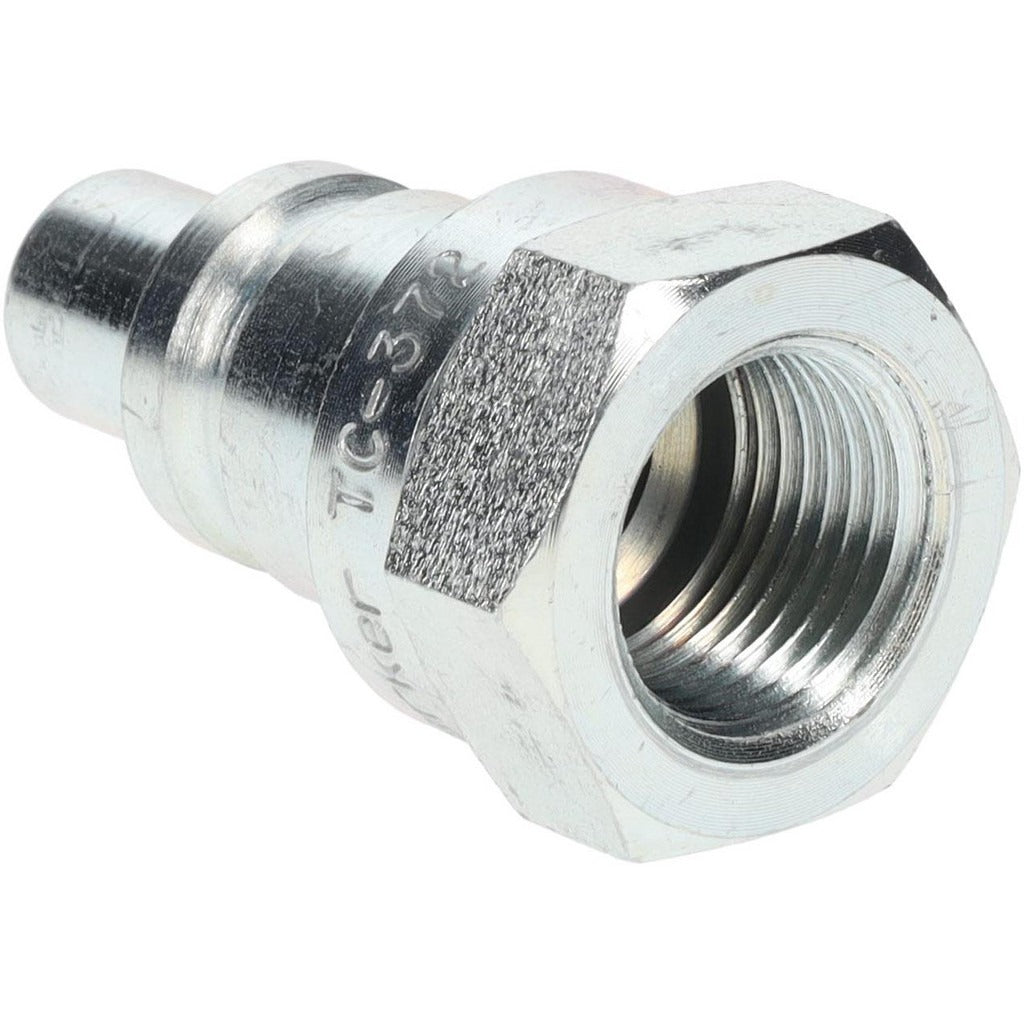

Parker TC-372 Female Pipe Rigid Fitting 3/8 in 10000 Psi

Product Description

The PARKER TC-372 is a female pipe rigid hydraulic hose fitting designed for high-pressure fluid power applications. Built from steel with a straight, threaded NPSF connection, this fitting handles working pressures up to 10,000 psi and temperatures ranging from -15 degrees F to 400 degrees F. At 1.82 inches in overall length and 3/8 inch body diameter, it is a compact, fixed-orientation fitting suited for use in demanding hydraulic circuits where vibration and movement require a secure, non-swivel connection. Licensed hydraulic technicians and industrial mechanics install this fitting as part of hose assembly or system plumbing work.

The TC-372 is specified for use with construction equipment, hydraulic jacking and house moving equipment, and railway maintenance machinery. Its 3/8 inch hose size and NPSF thread make it a standard choice when connecting hydraulic hose assemblies to female pipe ports in high-cycle, high-pressure systems that must maintain leak-free performance under sustained load. The straight body configuration simplifies routing in tight or linear plumbing runs where angled fittings are not required.

Key Features

• Rated to 10,000 psi maximum working pressure for heavy-duty hydraulic service
• NPSF threaded connection provides a secure, pressure-tight pipe thread interface
• Steel construction offers durability in harsh industrial and field environments
• Straight body shape supports direct, in-line hose-to-port connections
• Operating temperature range of -15 degrees F to 400 degrees F suits a wide range of hydraulic fluid types and ambient conditions
• Part of the Parker TC series, a recognized line of hydraulic hose fittings

Compatibility

Designed for use with construction equipment, hydraulic jacking and house moving equipment, and railway maintenance equipment per Parker specification. Fits 3/8 inch hydraulic hose assemblies using NPSF female pipe rigid connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with high-pressure fluid power systems. Depressurize and bleed the hydraulic circuit fully before removing or installing any fitting. Inspect thread condition and ensure mating port threads are clean and undamaged before assembly. Follow the equipment manufacturer and applicable fluid power standards for assembly procedure and system pressure testing after installation.
