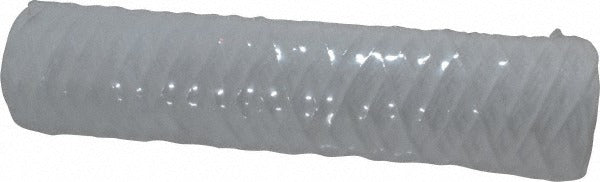

Parker T39R10A String-wound Cartridge Filter 1 Micron

Product Description

The PARKER T39R10A is a string-wound polypropylene cotton cartridge filter designed for plumbing and water filtration applications. It measures 10 inches in length with a 2.5-inch outside diameter and delivers a 1-micron filtration rating, making it well-suited for fine sediment and particulate removal. The string-wound construction provides depth filtration, trapping particles throughout the media rather than just at the surface. Rated for a maximum working temperature of 120 degrees F, this filter is appropriate for cold and cool water service lines. Plumbers and water treatment technicians are the primary installers.

This filter is used in residential and light commercial point-of-entry or point-of-use water filtration systems. Typical applications include whole-house sediment pre-filtration, well water systems, and inline protection for downstream equipment such as water softeners, reverse osmosis systems, or appliances sensitive to particulate contamination. The polypropylene cotton media and polypropylene plastic core are non-FDA-grade materials, so this filter is suited to non-food-contact water treatment installations.

Key Features

• 1-micron rating captures fine sediment, silt, and particulates
• String-wound depth filtration design for high dirt-holding capacity
• Polypropylene cotton media with polypropylene plastic core for chemical resistance
• 10-inch length fits standard 10-inch filter housings
• 2.5-inch outside diameter for compatibility with common cartridge housings
• Rated to 120 degrees F maximum working temperature

Compatibility

Designed as an OEM-style replacement for standard 10-inch string-wound sediment cartridge filter housings accepting a 2.5-inch outside diameter cartridge.

Installation Notes

Installation should be performed by a licensed plumber or qualified water treatment technician. Shut off the water supply and relieve system pressure before opening the filter housing. Follow local plumbing codes when integrating into potable or non-potable water lines. Do not exceed the 120 degrees F rated working temperature, and verify housing ratings match the installation conditions before service.
