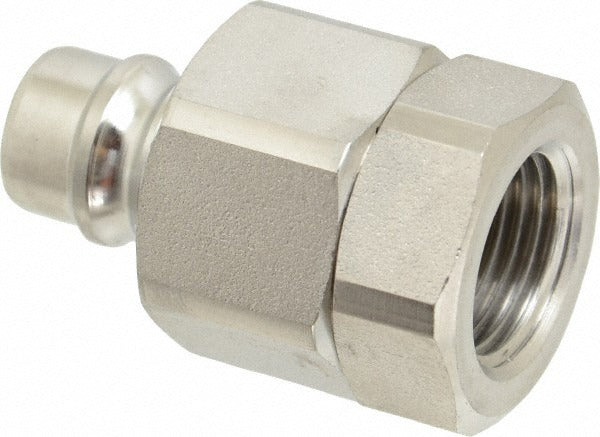

Parker SVHN8-8F Hydraulic Valve Fitting 1/2 in 3750 Psi Ss

Product Description

The PARKER SVHN8-8F is a straight hydraulic hose valve fitting designed for high-pressure fluid conveyance in industrial and mobile hydraulic systems. Manufactured from stainless steel, this Series H fitting features a 1/2 inch NPSF threaded connection and is rated for a maximum working pressure of 3,750 psi. The body diameter measures 1/2 inch, and the overall length is 1.98 inches. Its threaded, straight-body design makes for a clean, secure connection at hose termination points. Licensed hydraulic technicians and fluid-power specialists are the typical installers for this type of fitting in both stationary and mobile equipment environments.

The SVHN8-8F is suited for use on industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines where corrosion resistance and pressure integrity are required. The stainless steel construction makes it appropriate for environments exposed to moisture, mild chemicals, or temperature cycling. The fitting handles operating temperatures from -35 degrees F to 250 degrees F, giving it a useful range across seasonal outdoor applications and heated fluid systems. It ships in a quantity of one and has a minimum order quantity of one unit.

Key Features

• Stainless steel body provides corrosion resistance for wet, chemical-adjacent, and outdoor hydraulic environments
• 3,750 psi maximum working pressure rating for demanding hydraulic circuit applications
• Straight configuration with NPSF threaded connection for secure, leak-resistant hose termination
• 1/2 inch body diameter and 1/2 inch hose size for standard mid-range hydraulic hose assemblies
• Wide operating temperature range of -35 degrees F to 250 degrees F
• Compact overall length of 1.98 inches for installations with limited clearance

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 1/2 inch NPSF threaded straight valve fitting rated to 3,750 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power specialist. Depressurize and isolate the hydraulic circuit fully before removing any existing fittings or installing this component. Use appropriate thread sealant rated for hydraulic service and compatible with stainless steel. Follow the equipment manufacturer's torque and assembly guidelines for NPSF threaded fittings to prevent leaks or thread damage.
