Parker SVHC4-4M Hydraulic Hose Mpt Fitting 5000 Psi

Product Description

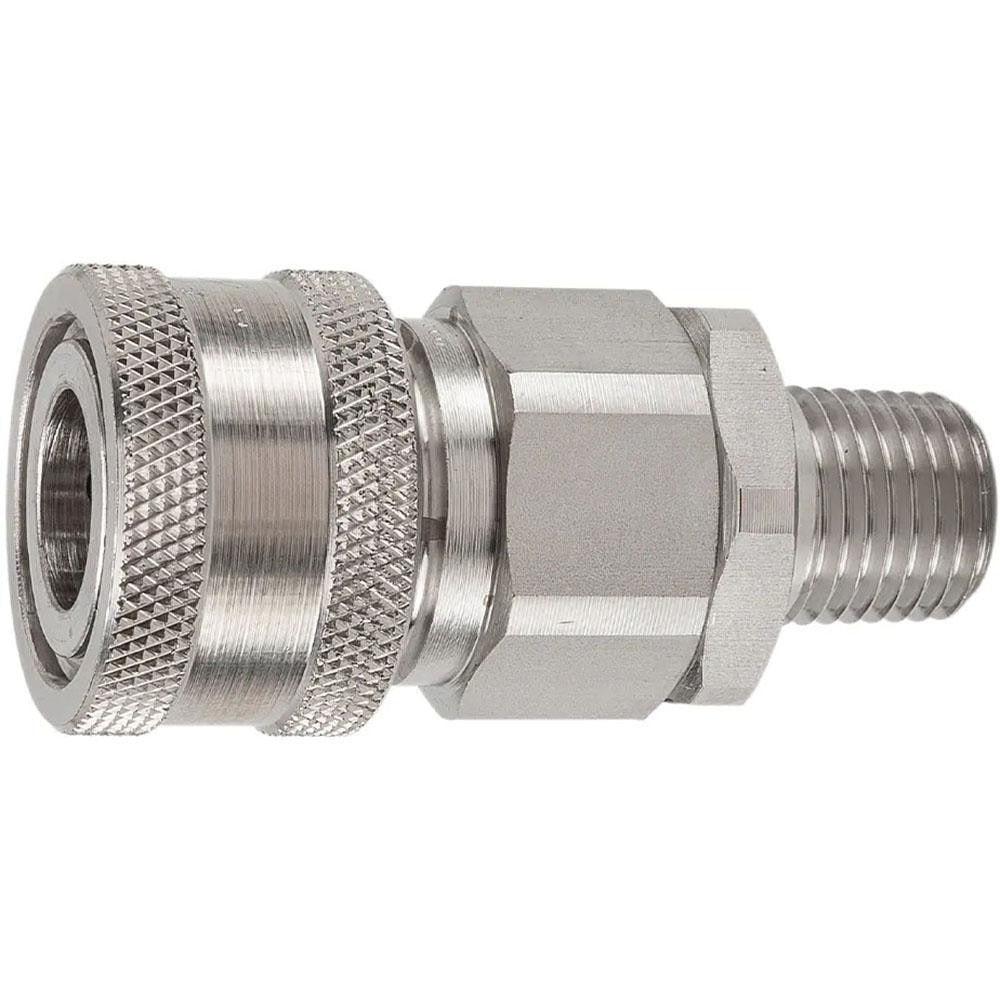

The PARKER SVHC4-4M is a straight male pipe thread (MPT) hydraulic hose fitting designed for high-pressure fluid connections in industrial and mobile equipment applications. Constructed from stainless steel, this Series H fitting accepts a 1/4-inch hose and features a 1/4-inch NPT threaded connection with a maximum working pressure of 5,000 psi. At 2.09 inches in overall length and weighing 0.22 pounds, it is a compact, durable component suited for use in hydraulic lines, water lines, and coolant circuits where corrosion resistance and pressure integrity are required. Licensed hydraulic technicians and fluid power mechanics typically install this fitting as part of hose assembly work on stationary or mobile equipment.

This fitting is used in industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant line assemblies. The straight body geometry and NPT thread form make it a standard choice when connecting hose ends to ported components, manifolds, or equipment fittings that use inch-series pipe threads. It is applicable in both shop-built hose assemblies and field repair scenarios where a reliable threaded MPT termination is required at a 1/4-inch port.

Key Features

• 5,000 psi maximum working pressure for demanding hydraulic service
• Stainless steel construction provides corrosion resistance in wet, coolant, and hydraulic fluid environments
• 1/4-inch NPT (National Pipe Taper) thread form for standard inch-series port connections
• Straight body shape simplifies hose routing in tight installations
• Series H designation for consistent fitment within the PARKER hose fitting line
• Compact overall length of 2.09 inches minimizes assembly footprint

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 1/4-inch MPT fitting with NPT thread form and up to 5,000 psi working pressure.

Installation Notes

This fitting should be installed by a qualified hydraulic technician or fluid power mechanic familiar with high-pressure hose assembly practices. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. NPT threads require thread sealant applied per the sealant manufacturer instructions; do not overtighten, as this can crack the fitting body or distort the thread form. Verify that the assembled hose and fitting combination is rated for the system operating pressure before returning the circuit to service.
