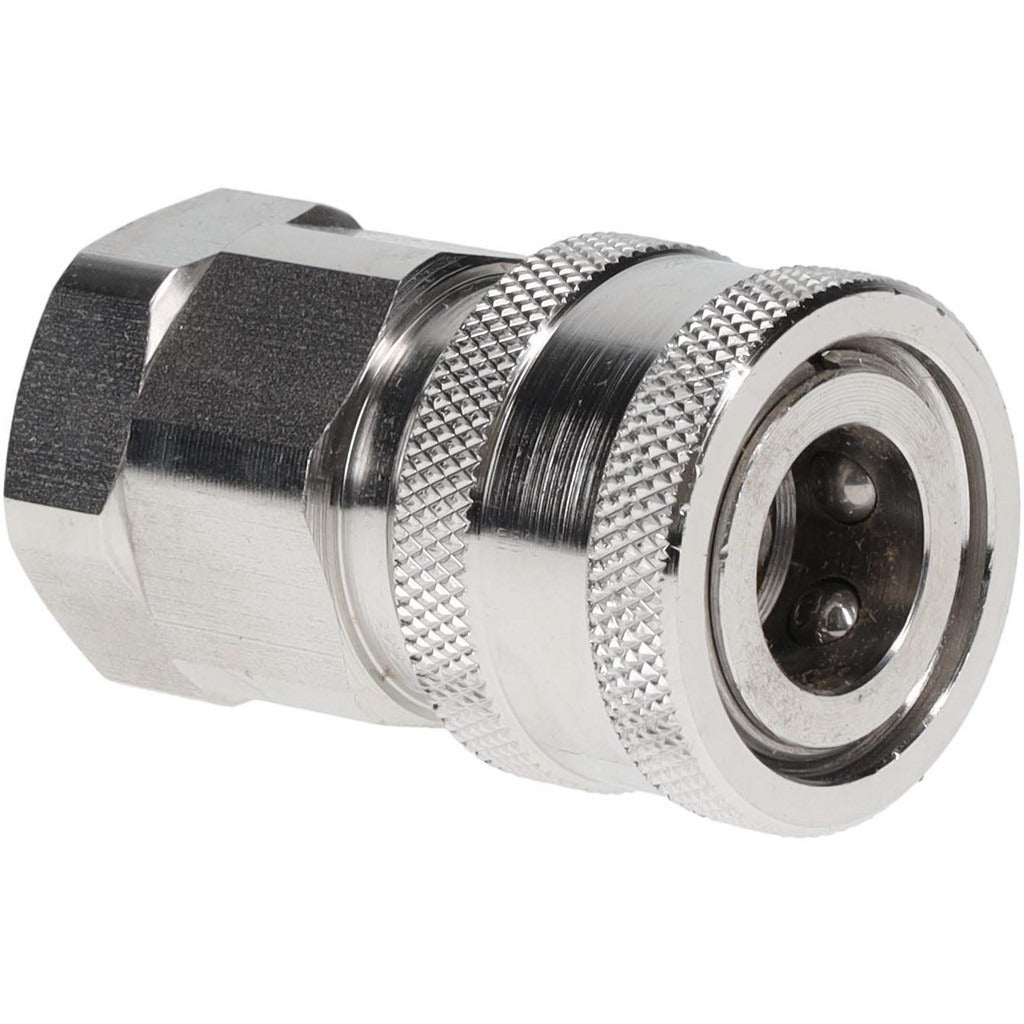

Parker SVHC4-4F Hydraulic Hose Valve Fitting 5000 Psi

Product Description

The PARKER SVHC4-4F is a straight hydraulic hose valve fitting rated for 5000 psi maximum working pressure, designed for use in high-pressure hydraulic fluid systems. Built from stainless steel with an NPSF threaded connection, this fitting measures 1.65 inches in overall length with a 1/4 inch body diameter and 1/4 inch thread size. It is installed by hydraulic technicians and millwrights on industrial and mobile equipment requiring reliable, leak-resistant termination points at valve interfaces. The stainless steel construction provides corrosion resistance across a broad service temperature range of -35 degrees F to 250 degrees F.

The SVHC4-4F is suited for industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines requiring a secure threaded valve connection. Its Series H straight-body design fits standard 1/4 inch hose assemblies and accommodates the compact routing demands typical in mobile machinery, agricultural equipment, and industrial fluid power systems. A Coupler Size of 0.25 inches ensures consistent fitment with compatible hose ends and valve ports in these applications.

Key Features

• 5000 psi maximum working pressure for high-demand hydraulic service
• Stainless steel body for corrosion resistance in harsh fluid environments
• NPSF threaded connection type for secure, pressure-tight engagement
• Straight body profile simplifies routing in tight hydraulic assemblies
• Rated from -35 degrees F to 250 degrees F for wide service range
• Series H design with 1.65 inch overall length for compact installations

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 1/4 inch NPSF threaded valve fitting rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter familiar with high-pressure fluid power systems. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Use appropriate thread sealant or tape rated for hydraulic service on NPSF threads, and verify torque requirements against system specifications and applicable industry standards. Inspect the fitting and mating surfaces for damage or contamination before final assembly.
