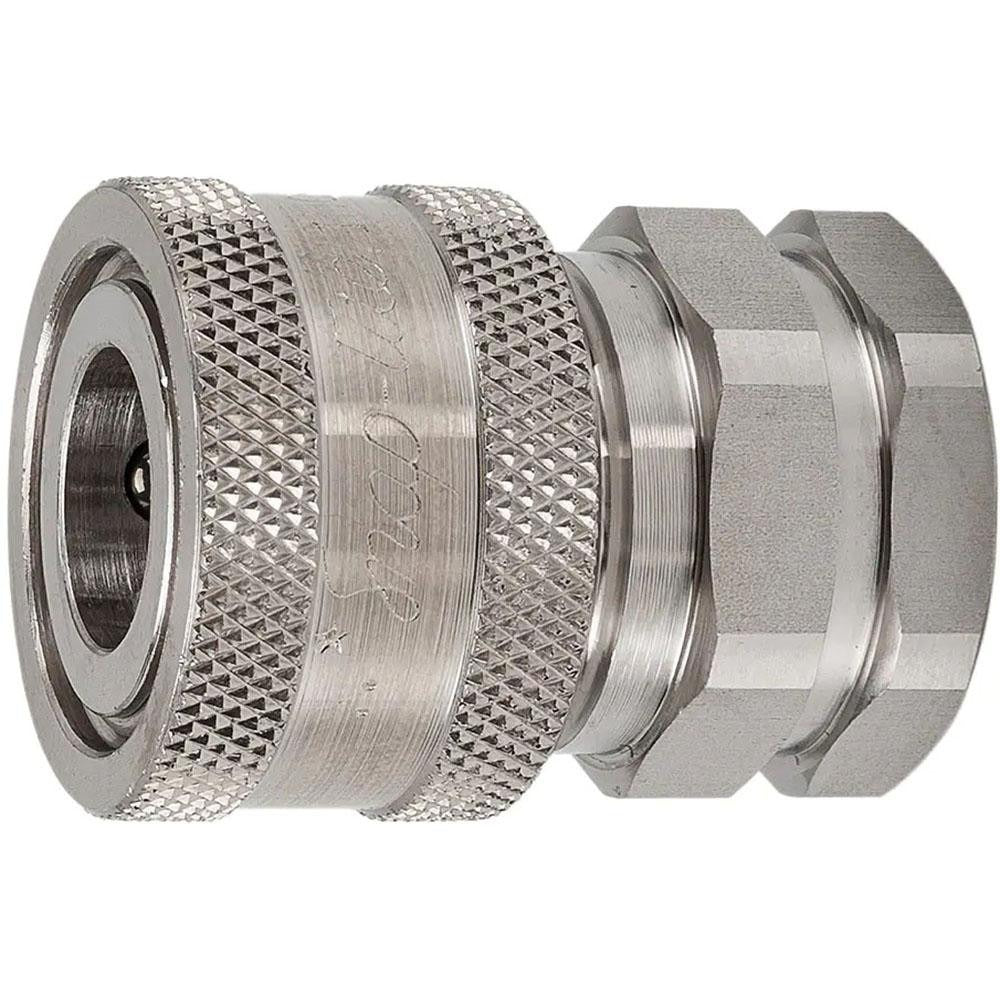

Parker SVHC32-32F Hydraulic Hose Valve Fitting 500 Psi

Product Description

The PARKER SVHC32-32F is a straight hydraulic hose valve fitting designed for high-pressure fluid connections in industrial and mobile equipment applications. Built from stainless steel, this fitting features a threaded NPT connection and carries a maximum working pressure rating of 500 psi. It is sized for 2-inch hose with a matching 2-inch thread and a body diameter of 2 inches. The overall installed length is 3.92 inches. HVAC and hydraulic system technicians, plumbers, and mobile equipment mechanics install this type of fitting when making secure, leak-resistant connections on pressurized fluid lines.

This valve fitting is rated for use on industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines. Its Series H designation and stainless steel construction make it suitable for environments where corrosion resistance and mechanical durability are required. The operating temperature range spans from -35 degrees F to 250 degrees F, covering most standard industrial and mobile service conditions. It ships as a single unit and is ordered individually.

Key Features

• Stainless steel body for corrosion resistance in hydraulic and coolant service
• Straight NPT threaded connection for standard pipe thread compatibility
• 500 psi maximum working pressure rating
• Operating temperature range: -35 degrees F to 250 degrees F
• 2-inch hose size and 2-inch thread size with 3.92-inch overall length
• Suitable for industrial hydraulic lines, mobile equipment, and water and coolant lines

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines as specified by the manufacturer. Verify hose size, thread specification, and pressure rating against your system requirements before installation.

Installation Notes

Installation should be performed by a qualified hydraulic or mechanical technician. Depressurize and isolate the hydraulic or fluid system completely before removing or installing any fitting. Use appropriate thread sealant rated for hydraulic service on NPT connections and torque to the fitting manufacturer's specification. Inspect the mating hose end and surrounding lines for wear or damage before returning the system to service.
