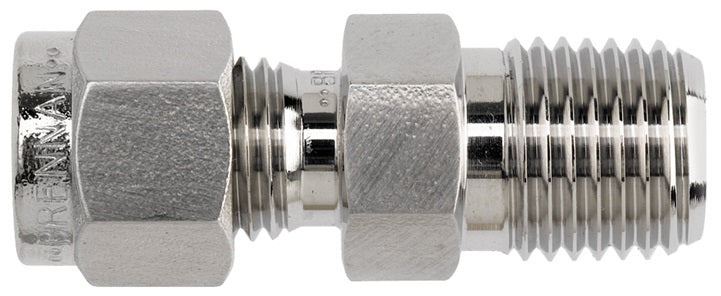

Parker SS-4-DMC-2 Connector Fitting

Product Description

The Parker SS-4-DMC-2 is a connector fitting suitable for instrumentation applications. This connector has a one-quarter inch tube connection on one end and a one-eighth inch MNPT connection on the other. Made from 316 stainless steel, it is part of the DMC series and has a straight shape. With a double ferrule swaging action, it ensures a secure connection.

• Connection 1: 1/4 inch Tube
• Connection 2: 1/8 inch MNPT
• Material: 316 Stainless Steel

Product Highlights

The Parker SS-4-DMC-2 fitting is designed for durability and reliability in various applications. Its construction allows for effective and secure connections in instrumentation systems.

Product Information

Standard Information

• Brand: Parker
• MPN: SS-4-DMC-2

Technical Specifications

• Series: DMC Series
• Fitting Type: Connector
• Connection Size 1: 1/4 inch
• Connection Type 1: Tube
• Connection Size 2: 1/8 inch
• Connection Type 2: MNPT
• Material: Stainless Steel (316)
• Shape (Orientation): Straight
• Ends Configuration: 1/4 inch Tube Compression, 1/8 inch Male NPT
• Hex Size: 1/2 inch
• Thread Size: 1/8-27
• Dimensions: 1.29 inch Length
