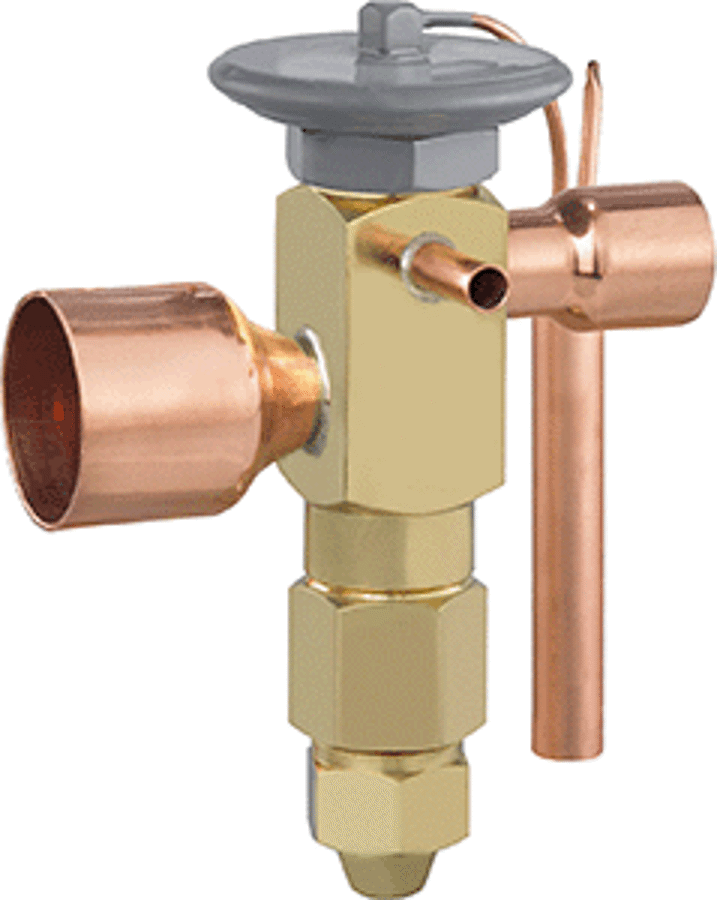

Sporlan Valves 124240 Type O Thermostatic Expansion Valve 30T R22 A/C

Product Description

The Sporlan Valves 124240 Type O Thermostatic Expansion Valve is designed to enhance both refrigeration and air conditioning systems. It features balanced port construction and a brass bar body, providing reliable performance for various applications.

• Brass bar body with balanced port construction
• Designed for both refrigeration and air conditioning applications
• Replaceable thermostatic element

Product Highlights

This expansion valve is equipped with a permanent 12 mesh strainer, synthetic seating surface for tight shut-off, and offers optional bi-directional performance. It is suitable for air conditioning and commercial refrigeration systems.

Product Information

Standard Information

• Brand: Sporlan Valves
• Type: Thermostatic Expansion Valve
• MPN: 124240
• Application: Air Conditioning and Refrigeration

Technical Specifications

• Size: 1-1/8 x 1-3/8 x 1/4 inches
• Connection Ends: ODF
• Equalizer: External
• Refrigerant: R-22
• Capacity: 30 tons
• Port Size: 1/4 inch
• Pieces Per Case: 12
• Case Weight: 30 pounds
• Case Length: 15.5 inches
• Case Width: 12.5 inches
• Case Height: 7 inches
• Price Group: TEV
• Harmonized Code: 8481.80.9045
• Pallet Weight: 1,400 pounds
• Pallet Length: 48 inches
• Pallet Width: 40 inches
• Pallet Height: 50 inches
• Cases Per Layer: 9
• Cases Per Pallet: 45
