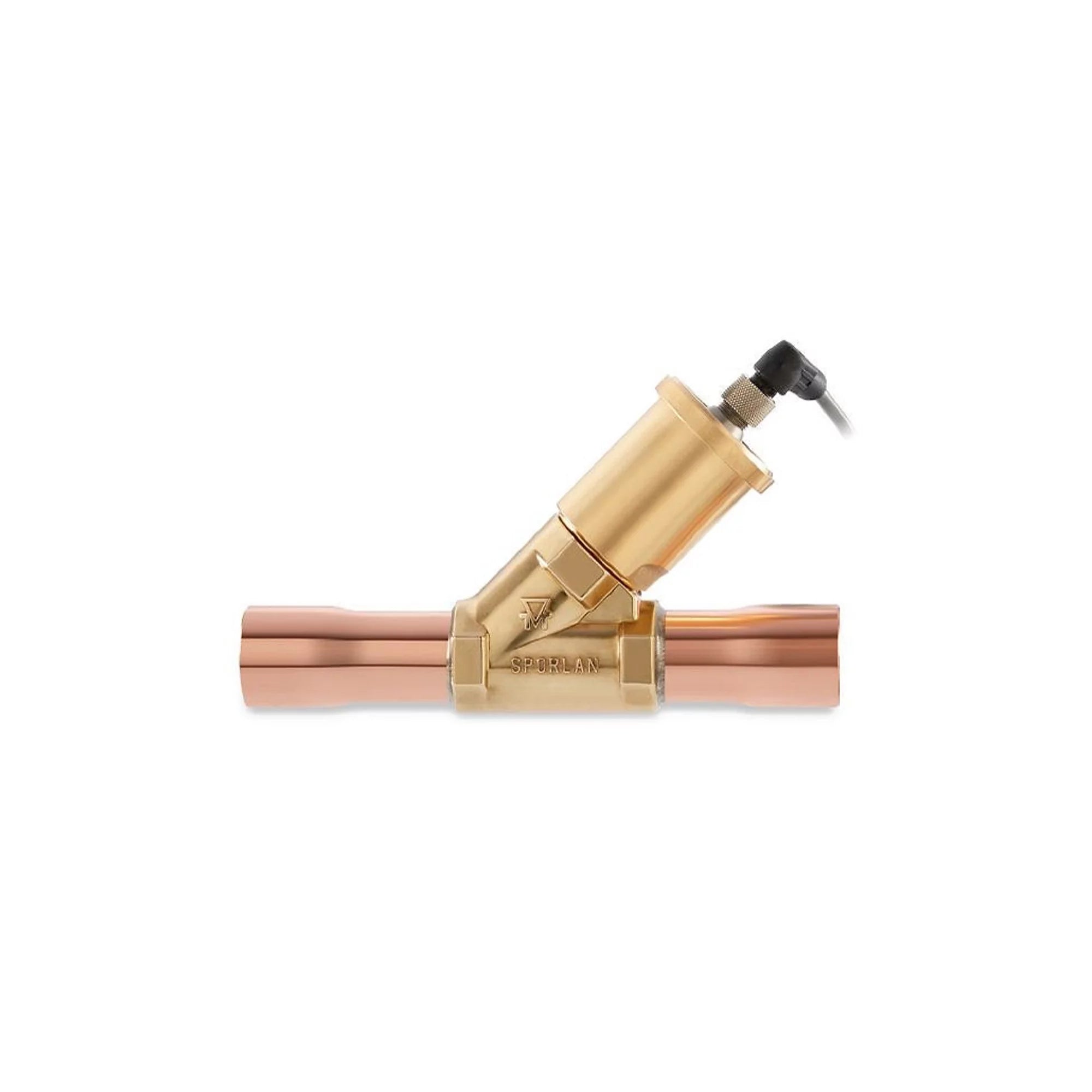

Parker Sporlan 940090 Evaporator Control Valve CDST-17 11ODF 20FT-S 1-3/8IN ODF Straight-thru 20FT

Product Description

The Parker Sporlan 940090 Evaporator Control Valve is engineered for precise and energy-efficient temperature control in evaporators. This advanced valve employs a step motor design, ensuring minimal input power and enhanced performance stability.

• Efficient 4-watt power usage compared to traditional designs
• 12-volt DC bipolar step motors for high accuracy
• Eliminates the need for pilot lines with direct external controller powering

Product Highlights

Featuring balanced ports and a unique cartridge design, the CDST-17 valve allows for easy maintenance without full system disassembly, revolutionizing evaporator pressure control. Suitable for various applications including heat reclaim and head pressure control.

Product Information

Standard Information

• Brand: Parker Sporlan
• UPC: 687472836049

Technical Specifications

• Width: 12 inches
• Height: 5 inches
• Length: 14 inches
• Weight: 5.2 pounds
• Body Material: Brass, Copper, Stainless Steel
• Temperature Range: -50°F to 140°F
• Maximum Temperature: 240°F
• Connection Type: ODF
• Inlet Connection Size: 1-3/8 inches
• Outlet Connection Size: 1-3/8 inches
