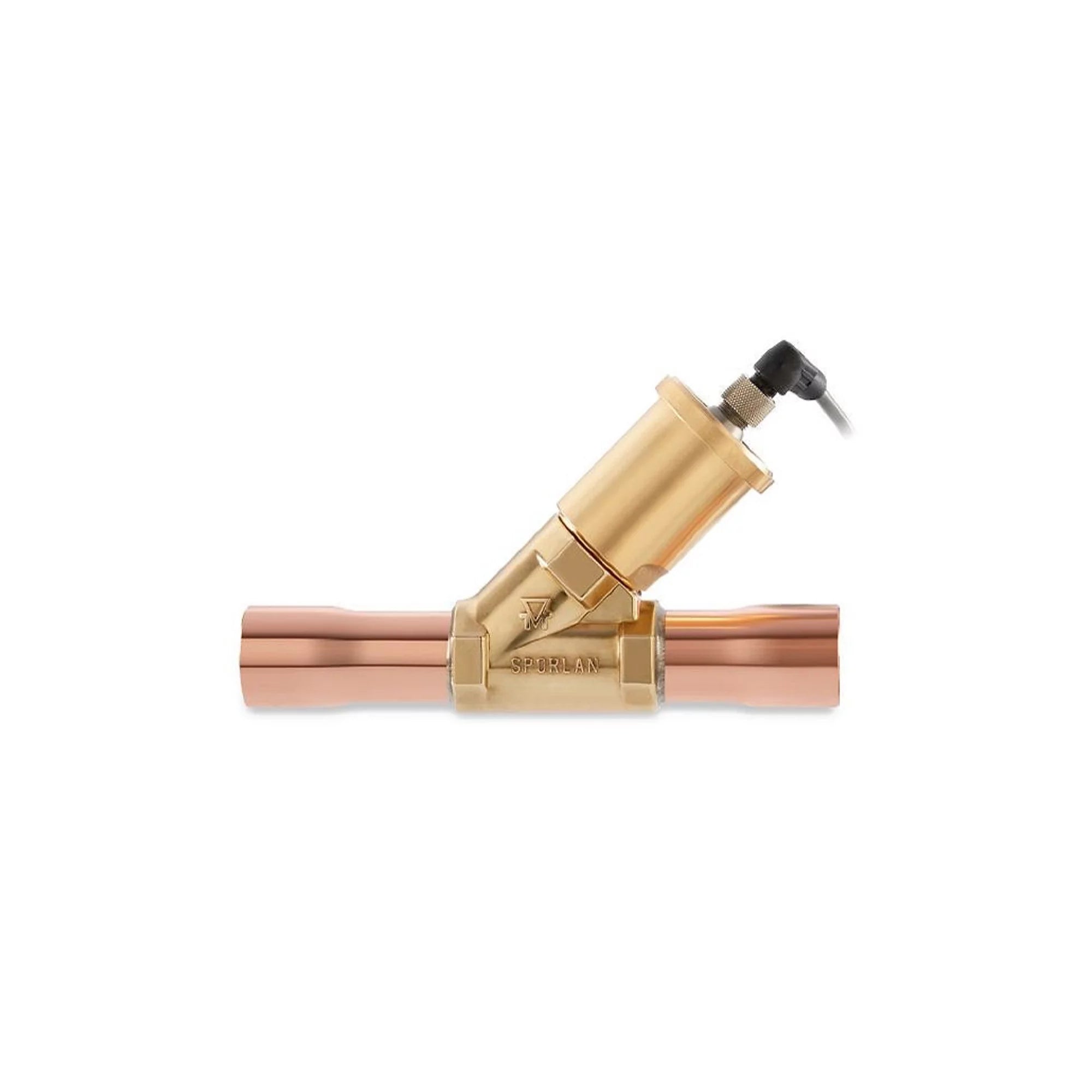

Parker Sporlan 940083 Evaporator Control Valve CDST-17 13ODF 20ft-S 1-5/8 ODF Straight-thru 20ft Replacement 940083

Product Description

The Parker Sporlan Evaporator Control Valve, model 940083, offers precise and efficient temperature regulation in evaporators. It optimizes refrigerant flow based on feedback from an electronic controller and sensor, ensuring optimal performance with minimal energy consumption.

• Features a balanced port design for reduced energy usage, requiring only four watts of power.
• Equipped with a 12-volt DC bipolar step motor that provides high precision and repeatability.
• Replaces conventional evaporator pressure regulators, suction stop solenoid valves, and thermostats without requiring pilot lines or bleeds.

Product Highlights

This valve is suitable for a variety of applications including heat reclaim, head pressure control, and liquid line differential applications with different seating materials. A simplified cartridge design facilitates easy maintenance and repair by allowing replacement of moving parts as a single unit while keeping the valve body intact in the line.

Product Information

Technical Specifications

• EAN: 0687472283133
• UPC: 687472283133
• Brand: Parker Sporlan
• Width: 12 inches
• Height: 5 inches
• Length: 14 inches
• Weight: 5.25 lbs
• Body Material: Brass, Copper, Stainless Steel
• Refrigerants: R-134a, R-404A, R-407C, R-410A, R-507A
• Connection Type: ODF
• Temperature Range: -50°F to 140°F (-45.56°C to 60.00°C)
• Maximum Temperature: 240°F (115.56°C)
• Inlet/Outlet Connection Size: 1-5/8 inches
