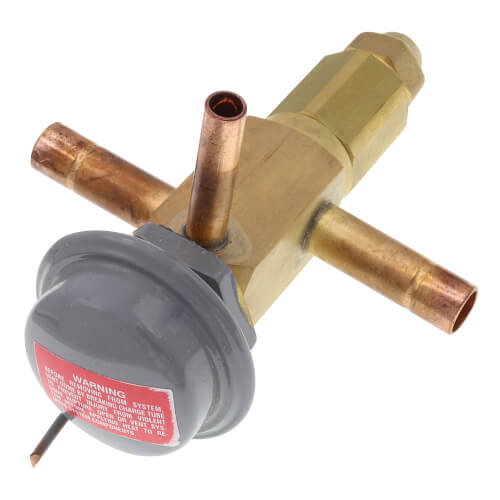

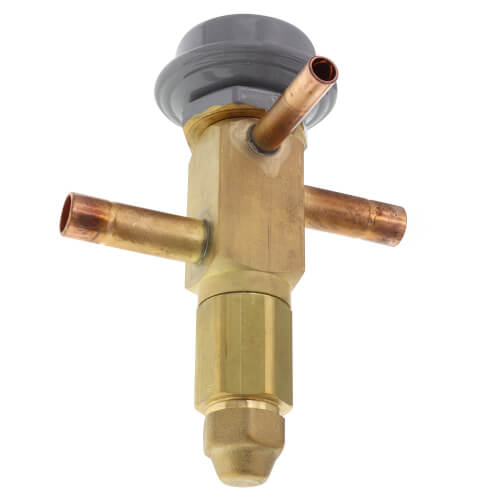

SPORLAN 904065 HGBE-5 Discharge Bypass Valve 3/8 Inch ODF External Equalization

Product Description

The SPORLAN HGBE-5 Discharge Bypass Valve, model 904065, serves to manage low load conditions in HVAC systems by maintaining minimum evaporating pressure. This prevents coil icing and avoids the compressor from operating at lower than designed suction pressures. Ideal for professional scenarios requiring reliable, continuous operation.

• Adjustable settings between 95 to 115 PSIG.
• Constructed with a robust brass body and copper connections.
• Features externally equalized control for enhanced accuracy.

Product Highlights

This SPORLAN valve is versatile with both SAE and ODF connection options available and features a solder connection type for secure installation.

Technical Specifications

• Body Material: Brass
• Connection Type: Solder
• Inlet/Outlet Size: 3/8 inch ODF
• Port Size: 1/2 inch
• Equalizer: Externally equalized
• Pressure Settings: 95 to 115 PSIG
• Maximum Design Pressure: 700 psi
