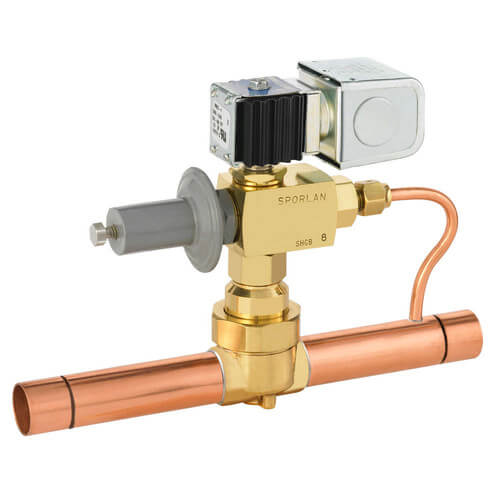

Sporlan 904015 SHGB-8 7/8 Inch ODF Discharge Bypass Valve Internally Equalized 0/100 PSIG

Product Description

The Sporlan 904015 SHGB-8 is a 7/8 inch ODF discharge bypass valve designed for high-efficiency and reliability in HVAC systems. This internally equalized valve is optimized for regulating minimum evaporating pressure during low load conditions, preventing coil icing and maintaining compressor performance.

• Brass body construction ensures durability and corrosion resistance.
• Internally equalized for improved functionality across a range of settings.
• Designed for easy installation with solder connection type.

Product Highlights

This valve features a robust design capable of handling pressures up to 100 PSIG, making it ideal for both commercial and industrial HVAC systems. It includes an optional inlet strainer and offers variable settings for precise control.

Product Information

Standard Information

• Brand: Sporlan
• Model: SHGB-8

Technical Specifications

• Type: Discharge Bypass Valve
• Connection Type: Solder
• Connection Size: 7/8 inch ODF
• Pressure Rating: 0 to 100 PSIG
• Material: Copper
• Weight: 3.7 pounds
• Dimensions: Length 11 inches, Width 5 inches, Height 5 inches
