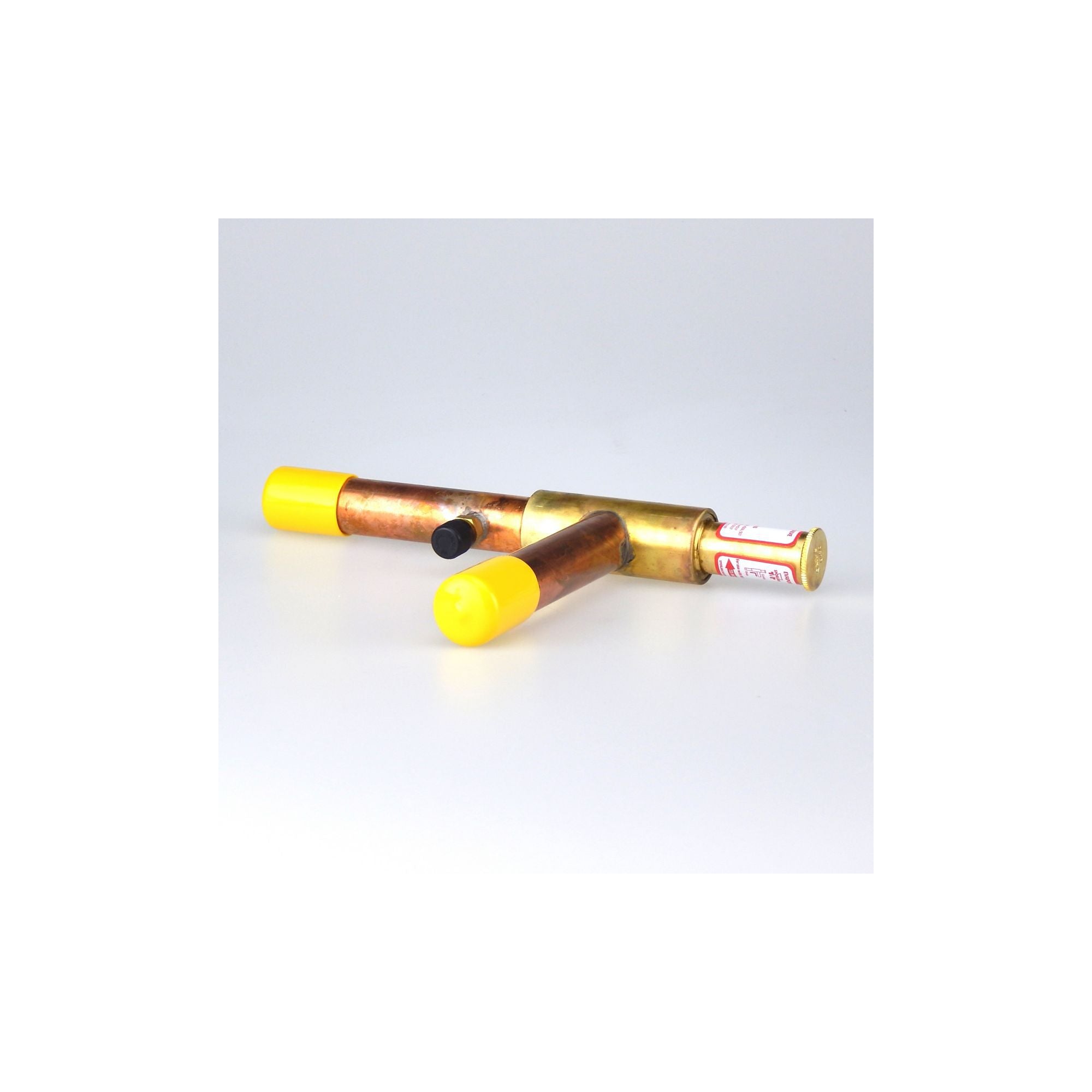

Parker Sporlan 901096 Pressure Regulating Valve ORIT-6-0/50 3/4 Inch Port 5/8 Inch ODF 0 - 50 PSIG Replacement 901096

Product Description

The Parker Sporlan 901096 Pressure Regulating Valve ensures precise control of evaporator temperature by maintaining consistent evaporator pressure. This functionality is crucial in applications where balance between system capacity and load requirements is needed, especially during low load conditions or in multi-temperature evaporator systems.

• Direct acting valve mechanism designed for economical operation.
• Hermetically constructed to prevent leaks, enhancing durability and reliability.
• Incorporates corrosion-resistant materials suitable for various industrial applications.

Product Highlights

This valve adjusts to increases in evaporator load by opening on the rise of inlet pressure to facilitate greater flow capacity. Conversely, it modulates closed to maintain the desired pressure setting during load decreases.

Product Information

Standard Information

• Brand: Parker Sporlan
• MPN: 901096

Technical Specifications

• Connection Type: ODF
• Adjustment Range: 0 to 3.45 bar (initial) up to 2.07 to 6.90 bar
• Corrosion Resistant: Yes
• Pressure Setting: Adjustable from 0 to 50 PSIG
• Width: 6.375 inches
• Height: 1.625 inches
• Length: 10.5 inches
• Weight: 1.2 pounds
