Parker Sporlan 900570 Pressure Regulating Valve CROT-6-0/60 7/8in ODF 0-60 PSIG

Product Description

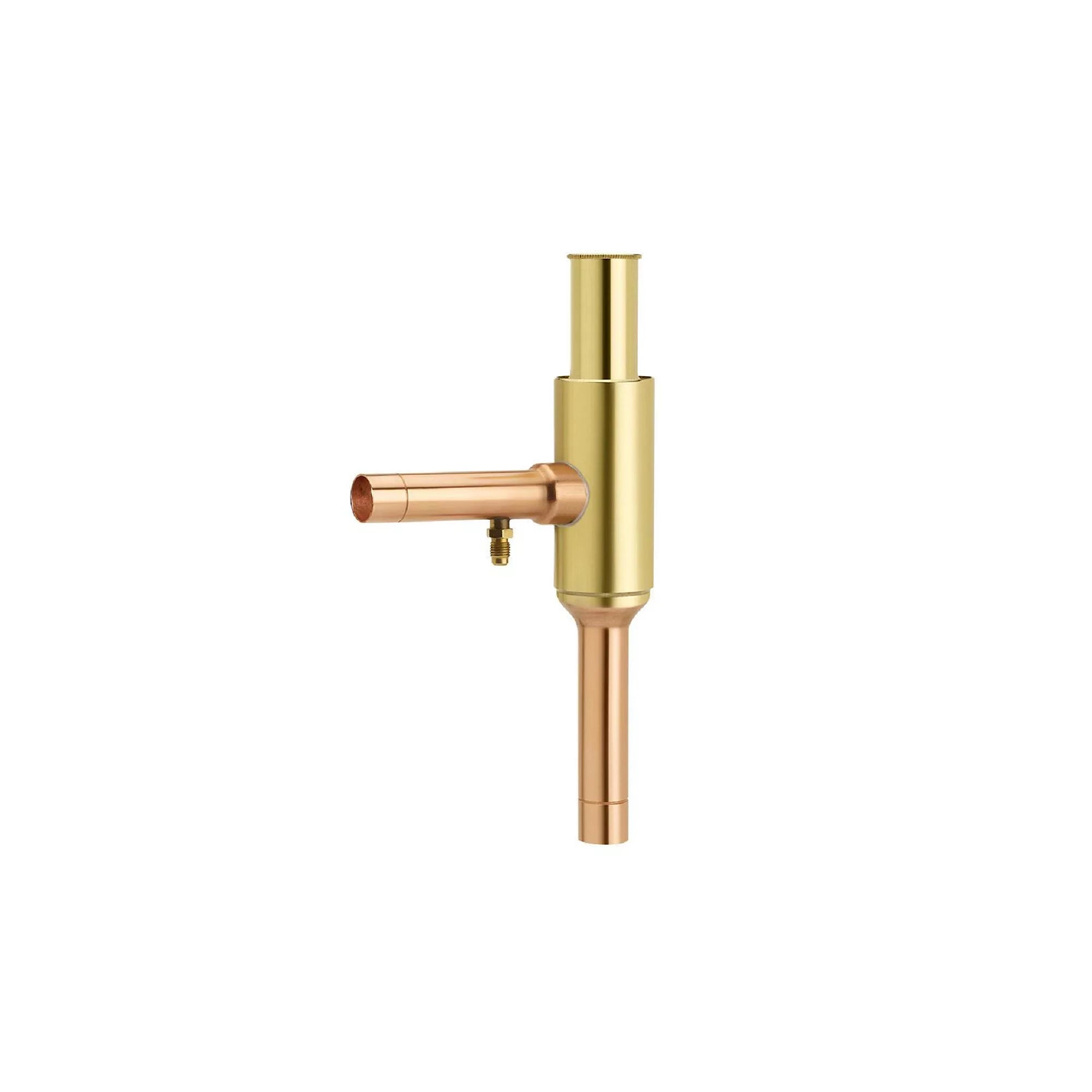

The Parker Sporlan Crankcase Pressure Regulating Valve, model CROT-6-0/60, is designed to prevent compressor motor overloading by maintaining crankcase pressure at a set maximum. It features an adjustable setting to accommodate varied system requirements and automatically modulates vapor flow from the evaporator.

• Supports a working pressure up to 650 PSIG
• Adjustable models including CRO-4, CRO-6, CROT-6, CRO-10, and CROT-10
• Constructed from high-quality copper with ODF connection type

Product Highlights

This valve is crucial for maintaining the operational integrity of HVAC systems, particularly during defrost cycles or shutdown periods. It helps in preventing the compressor suction pressure from exceeding the set value, thereby safeguarding the compressor from potential damage.

Product Information

Standard Information

• Model Number: 900570
• Brand: Parker Sporlan
• Connection Type: ODF

Technical Specifications

• Width: 6.25 inches
• Height: 1.75 inches
• Length: 10.5 inches
• Weight: 1.34 pounds
• Maximum Working Pressure: 650 PSIG
• Material Composition: Copper
• Prop 65 Warning: Yes
