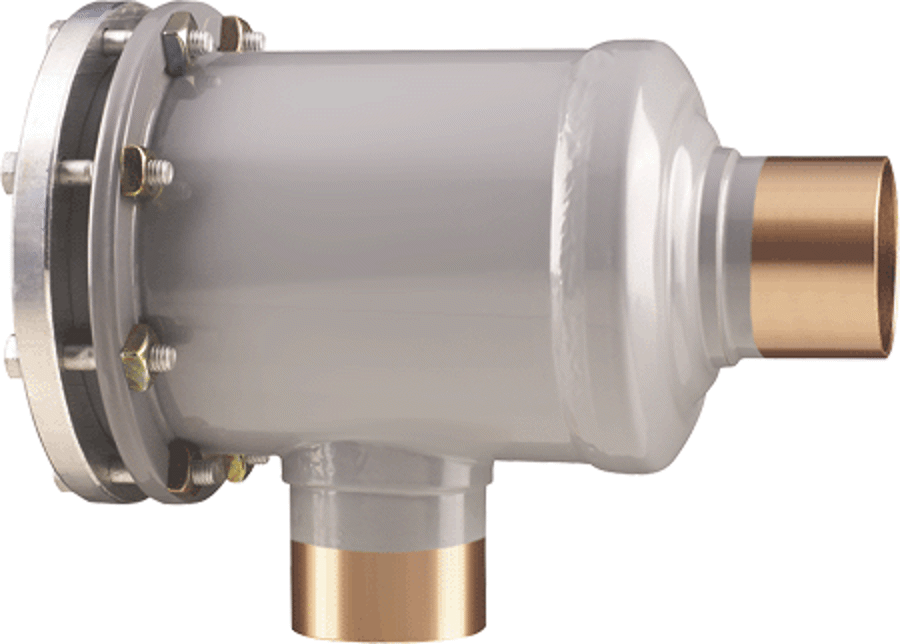

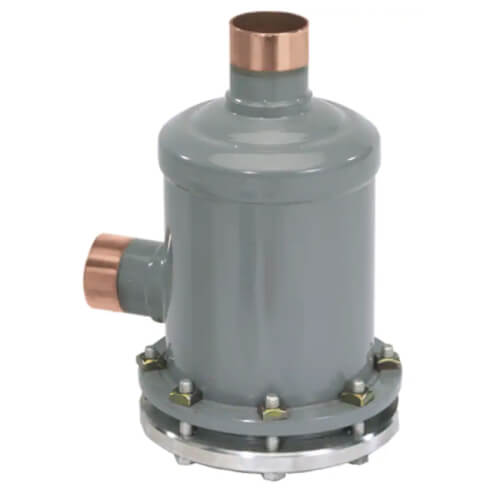

Sporlan 800506 RSF-4817-T Suction Line Replaceable Element Shell 2-1/8 Inch

Product Description

The Sporlan 800506 RSF-4813-T suction line replaceable element shell is meticulously designed for providing superior filtration of solid contaminants before the compressor in HVAC and refrigeration systems. Precision-engineered by Sporlan Valves, this model stands out in industrial and scientific applications.

• Features a large filtering area for minimal pressure drop.
• Includes replaceable pleated filter elements for long-lasting performance.
• Compatible with desiccant cores for use post-burnout cleanup, optimizing operational reliability.

Product Highlights

This suction shell operates efficiently with a maximum pressure rating of 500 psi, ensuring robust performance across various commercial environments. Its dual-direction flow facilitates easy installation in compact units.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 800506

Technical Specifications

• Connection Type: ODF
• Size: 2-1/8 inches
• Length: 24 inches
• Width: 8 inches
• Height: 9 inches
• Weight: 9.6 pounds
• Filter Area: 388 square inches
• Material: Coated for corrosion resistance
• Maximum Pressure: 500 psig
