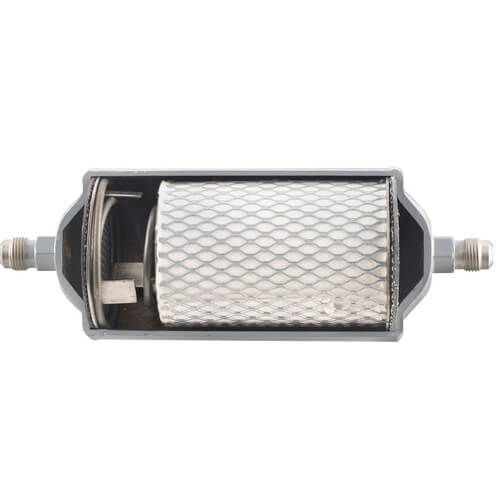

Sporlan 800042 SF-285-F Suction Line Filter Drier 5/8 Inch SAE 28 Cubic Inches

Product Description

The Sporlan SF-285-F Suction Line Filter Drier, model 800042, is designed for robust protection and efficient filtration in HVAC systems. Suitable for both refrigeration and air conditioning applications, this model ensures optimal functioning of system components by preventing dirt accumulation in the compressor.

• Connection size of five-eighths of an inch SAE.
• Length of eight point seventy-eight inches and diameter of three inches.
• Features bypass options and a full flow design for reduced pressure drops.

Product Highlights

This filter drier features a maximum corrosion resistance and is UL listed, guaranteeing safe and reliable performance. It offers a straightforward installation process with copper connections, and a relief device that activates to maintain minimal pressure drops if the filter becomes clogged.

Technical Specifications

• Brand: Sporlan
• MPN: 800042
• Type: Mechanical Components, Suction Line Filter-Drier
• Connection Type: SAE
• Nominal Capacity Range (Ton): 6.4
• Filter Area: 28 square inches
• Maximum Rated Pressure: 400 psi for standard models, 500 psi for SF-64 models
• Refrigerant Type: R-12, R-502, R-507, R-404A, R-134A, R-407C, R-22
