SPORLAN 800028 SF-283-F Suction Line Filter Drier 3/8 inch SAE 28 Cubic Inches

Product Description

The SPORLAN 800028 SF-283-F Suction Line Filter Drier, featuring a 3/8 inch SAE connection, is designed to optimize the performance of your HVAC system by providing superior filtration of solid contaminants ahead of the compressor. This filter ensures clean operation and maintains minimal pressure drop.

• Efficient solid contamination removal
• Low pressure drop with bypass feature
• Robust corrosion-resistant construction and UL listed

Product Highlights

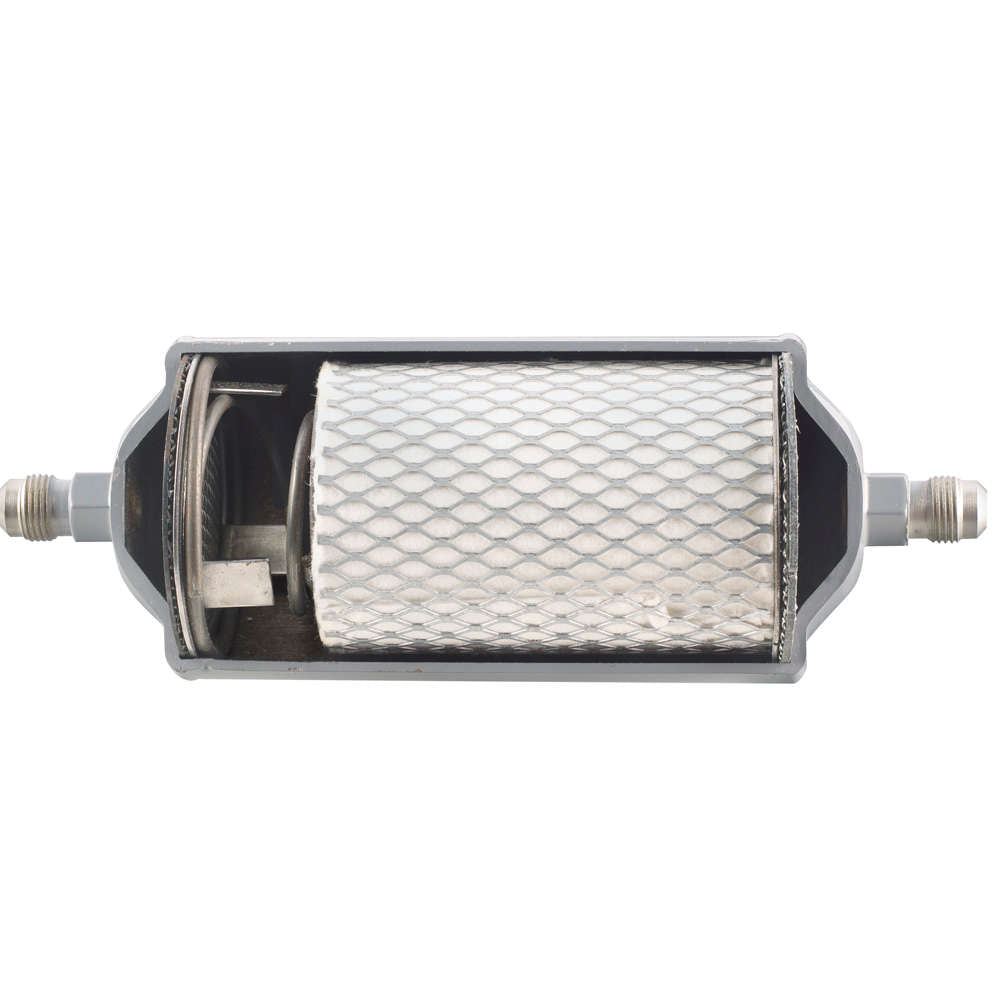

This suction line filter drier is crafted to enhance the longevity and efficiency of air conditioners and refrigeration systems by preventing debris and particulate buildup. It includes a full flow design to maintain consistent performance even when the filter capacity is reached. A relief device is integrated to maintain optimal pressure levels, ensuring reliable operation.

Product Information

Standard Information

• Brand: SPORLAN
• Model: 800028

Technical Specifications

• Connection Size: 3/8 inch SAE
• Total Filter Area: 28 square inches
• Length: 8.78 inches
• Diameter: 3 inches
• Maximum Operating Pressure for SF Models: 400 psi, 500 psi for SF-64 models
• Refrigerant Types Supported: R-507, R-134A, R-12, R-22, R-407C, R-502, R-404A
