Product Description

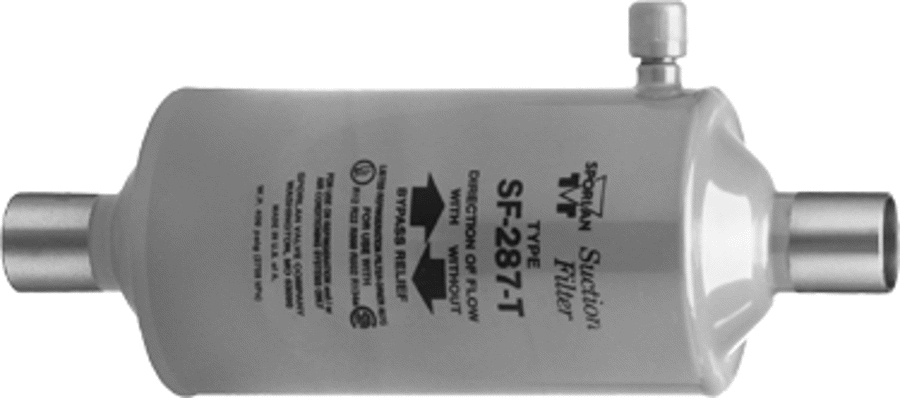

The Sporlan 800008 Suction Filter protects your compressor from contaminants. Suitable for use with all brazing alloys and designed with a full-flow feature, this filter ensures minimal pressure drop. It includes a bypass feature to prevent system shutdown if the filter-drier becomes clogged. Available with an optional relief feature for maximum corrosion resistance.
- Protects the compressor from contaminants
- Suitable for use with all brazing alloys
- Full flow design for low pressure drop
Product Highlights
Bi-Directional Flow Suction Filter with Bypass Relief
Product Information
Standard Information
-
Vendor: Sporlan Valves
-
Capacity: 48 cu in
Technical Specifications
-
Connection Ends: ODF
-
Size: 1-3/8 inches
-
Length: 14.3 inches
-
Width: 3.3 inches
-
Height: 3.3 inches
-
Diameter: 3.00 inches
-
Master Product Group: Contaminant Control Products
-
Product Group: Sealed Filter-Driers
-
Item Class: SEALED SUC FLTR
-
Price Group: CA
-
Harmonized Code: 8421.39.8090
-
Pieces Per Case: 12
-
Case Weight: 43.50
-
Case Length: 15.00 inches
-
Case Width: 13.00 inches
-
Case Height: 10.50 inches
-
Cases Per Pallet: 36
-
Cases Per Layer: 9
-
Pallet Weight: 1,657.40
-
Pallet Length: 48 inches
-
Pallet Width: 40 inches
-
Pallet Height: 50 inches
