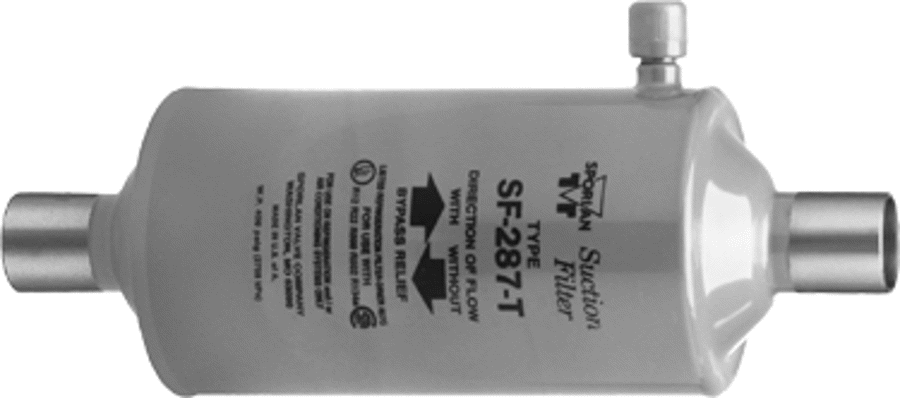

SPORLAN 800002 Suction Line Filter 7/8 Inch ODF Bi-Directional SF-287-T

Product Description

The SPORLAN 800002 Suction Line Filter is designed to protect HVAC and refrigeration compressors from contaminants. Suitable for use with all common refrigerants, this filter features a bi-directional flow with a relief valve to maintain operation even when the filter becomes clogged.

• Effective contaminant removal ensures compressor longevity.
• Bi-directional flow design accommodates versatile installation.
• Incorporates a relief feature to prevent system shutdown.

Product Highlights

This filter is crafted for utility in HVAC and refrigeration systems, providing both protection and minimal pressure drop across the system. Constructed for durability, it offers maximum corrosion resistance and is fully compatible with all brazing alloys.

Product Information

Standard Information

• Brand: SPORLAN
• MPN: 800002

Technical Specifications

• Capacity: 28 cu in
• Connection Ends: ODF
• Size: 7/8 inch
• Length: 11.5
• Width: 3.3
• Height: 3.3
• Diameter: 3.00 inch
• Product Group: Sealed Filter-Driers
