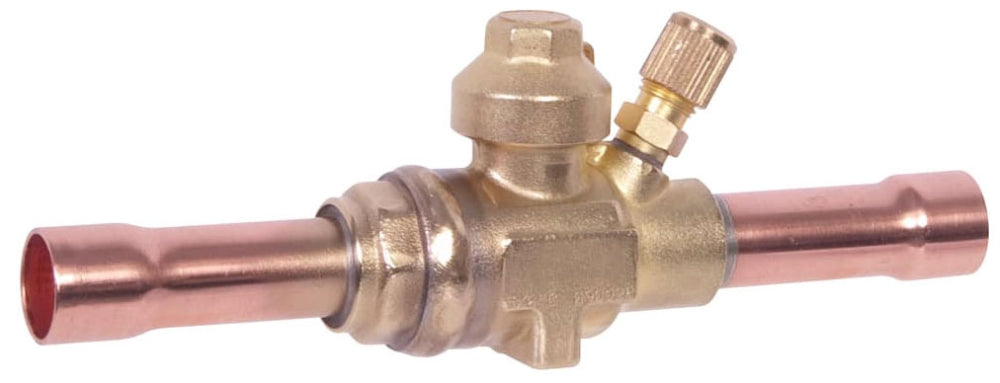

Sporlan 502060 Ball Valve ODF x ODF 700 PSI 1-Piece EBVP-1110

Product Description

The Sporlan Brass Ball Valve model 502060 is designed for robust HVAC system applications. This valve is crafted from forged brass with a polished brass ball ensuring durability and reliability in controlling flow within refrigeration systems.

• Durable single-piece forged brass construction.
• Full port, quarter-turn operation allows for quick and efficient flow control.
• Compatible with a wide range of temperatures from -40 to 300 degrees Fahrenheit.

Product Highlights

This ball valve features dual Teflon seals and a non-stick seal material that prevent leaks and maintain integrity under various conditions. It supports a pressure rating of 700 PSI and is suitable for applications like air conditioning systems, heat pumps, and refrigeration for supermarkets and transportation systems.

Technical Specifications

• Nominal Size: 1-3/8 inch x 1-3/8 inch
• End Connections: ODF x ODF
• Pressure Rating: 700 PSI
• Temperature Range: -40 to 300 degrees Fahrenheit
• Body Material: Forged Brass
• Ball Material: Polished Brass
• Actuation Type: Quarter Turn
• Applicable Standards: UL, CE
