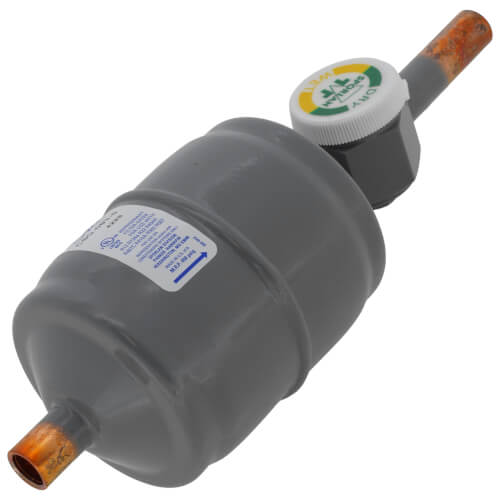

Sporlan 409993 3/8 inch CSG-083S Drier w/SghtGlss

Product Description

The Sporlan 409993 CSG-083S Filter-Drier with Sight Glass is crafted for reliability in HVACR systems, providing exceptional control over contaminants like moisture and acids.

• Optimal dehydration and acid removal
• Durable construction with solid copper fittings
• UL listed, ensuring safety and performance

Product Highlights

This 3/8 inch ODF solder component is essential for maintaining system integrity by filtering out particles, controlling moisture, and preventing blockages. With a compact design, it's an excellent addition for systems up to 20 tons.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 409993

Technical Specifications

• Connection Type: ODF Solder
• Capacity: 8 cubic inches
• Diameter: 2.62 inches
• Length: 9 inches
• Width: 3 inches
• Height: 3 inches
• Weight (lbs): 3.99918068
• Pressure Rating: 650 psig
• Refrigerant Compatibility: HCFC, HFC, HFO, and HC refrigerants
• Compliance: UL, RoHS, REACH, ATEX, PED
