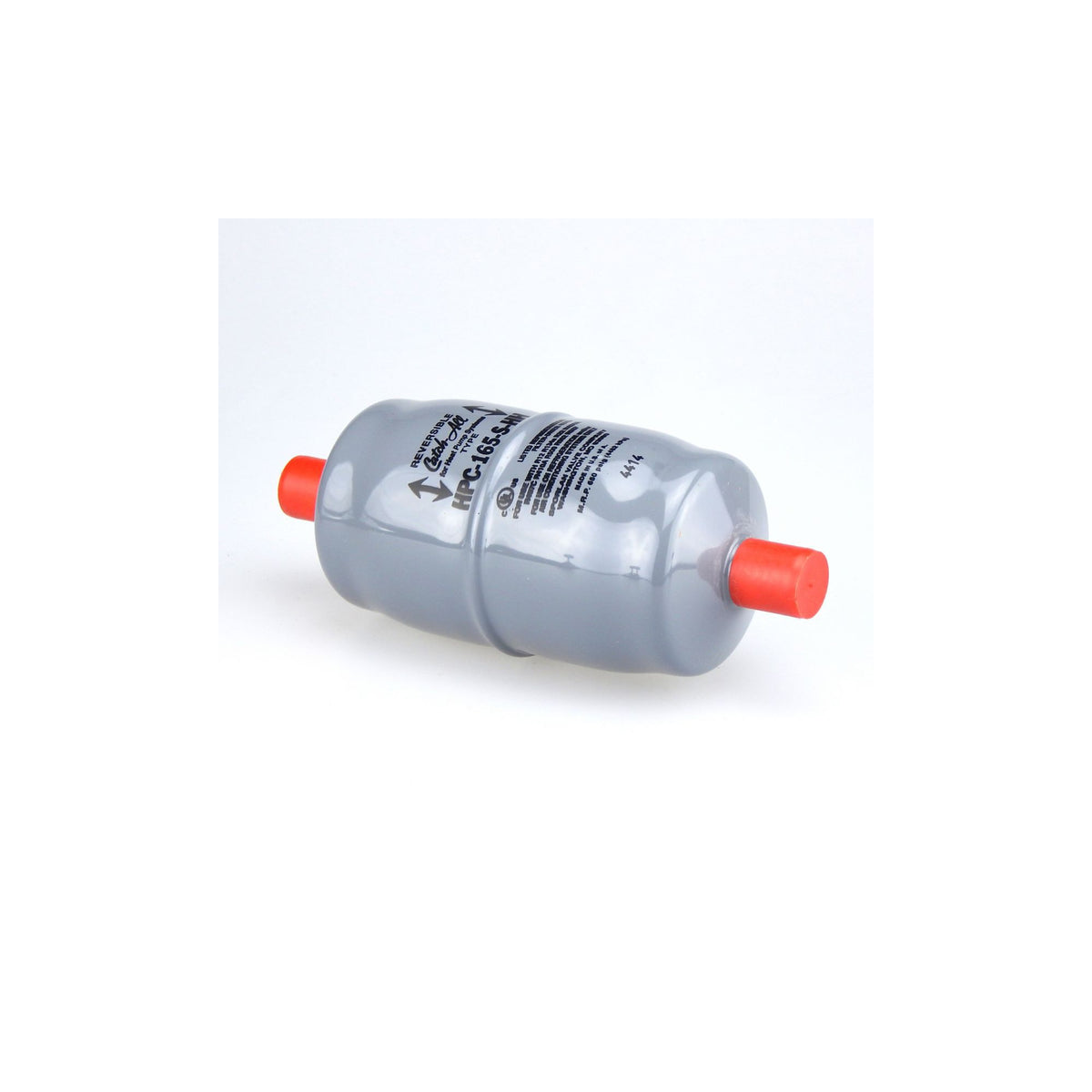

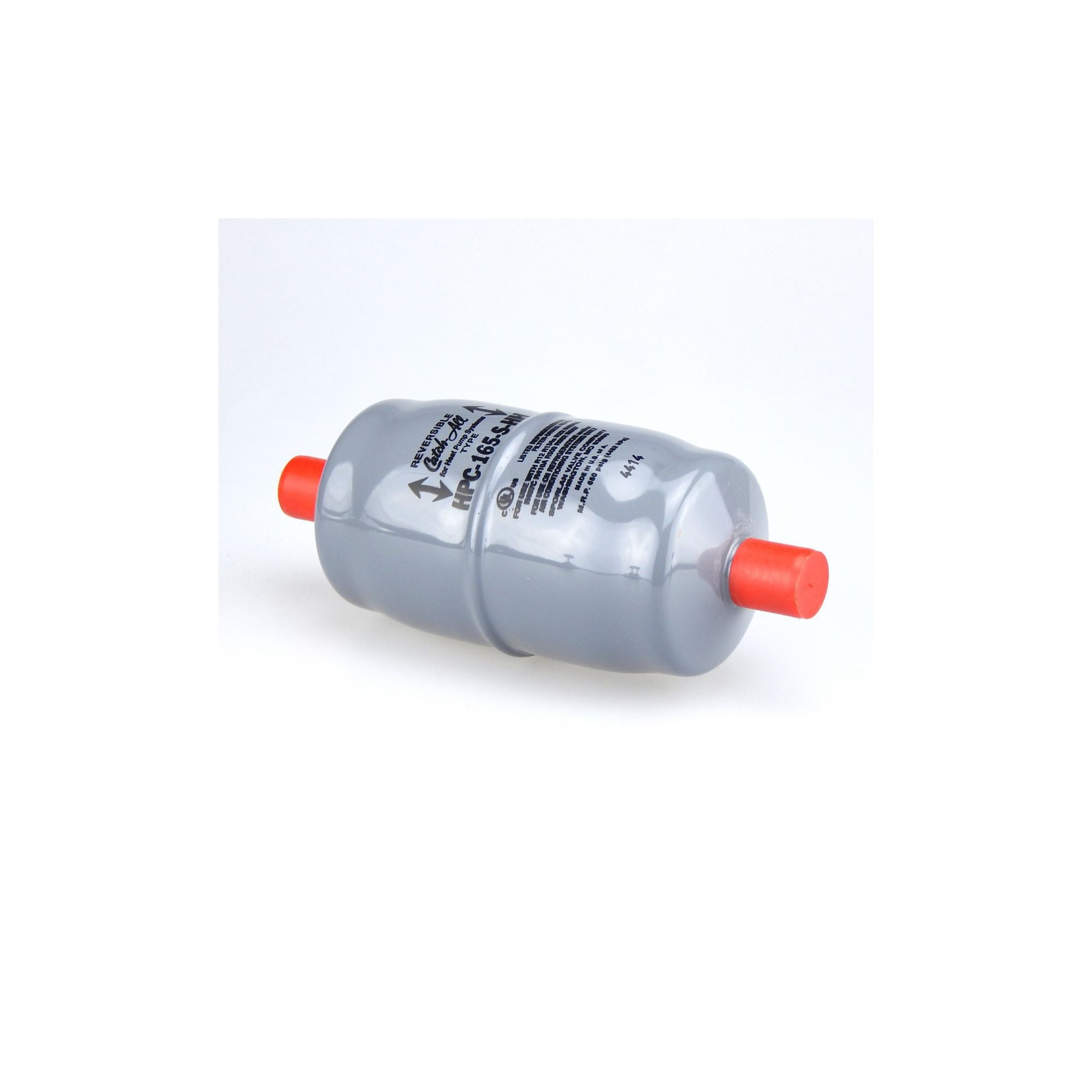

Parker Sporlan 404281 HPC-165-HH 5/8 Inch SAE Liquid Line Reversible Heat Pump Filter-Drier

Product Description

The Parker Sporlan 404281 HPC-165-HH 5/8 inch SAE Liquid Line Reversible Heat Pump Filter-Drier is engineered for efficient moisture and acid removal in refrigeration systems. It features a unique molded porous core that adsorbs moisture and acids, retaining them deep within the desiccant granules thus ensuring reliable performance and durability.

• Effective in removing water, acids, and fine particles from refrigerants.
• Reversible flow with minimal pressure drop.
• Durable, powder-coated shell for corrosion resistance.

Product Highlights

This Filter-Drier excels in system protection and cleanliness, supporting all HCFC and HFC refrigerant/lubricant combinations used in modern systems.

Product Information

Standard Information

• Brand: Parker Sporlan
• Type: Liquid Line Bi-Flow Filter-Drier

Technical Specifications

• Model: HPC-165-HH
• Connection Type: Sweat or Braze
• Refrigerant Capacity: 10.1 Tons at 1 psi ΔP capacity for R-410a
• Inlet/Outlet Size: 5/8 inch
• Height: 3.125 inches/li>
• Length: 9 inches
• Width: 3.125 inches
• Weight: 1.9 lbs
