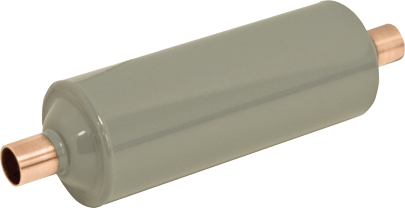

Sporlan Valves 404281 Catch-All Filter-Driers 5/8 SAE Reversible Heat Pump

Product Description

The Sporlan Valves 404281 Catch-All Filter-Driers provide effective refrigeration management. This reversible heat pump filter-drier is crucial for cleanup after burnout in HVAC systems.

• Leak-proof shell ensures reliable operation
• Compatible with HCFC and HFC refrigerants
• Molded porous core for improved moisture and acid removal

Product Highlights

This product is designed to remove contaminants and is UL Listed for safety. It operates efficiently in either flow direction, providing versatility in installation.

Product Information

Standard Information

• Brand: Sporlan Valves
• MPN: 404281

Technical Specifications

• Capacity: 14 cu in
• Connection Ends: SAE
• Size: 5/8 inch
• Length: 9.0 inches
• Width: 3.1 inches
• Height: 3.1 inches
• Diameter: 3.00 inches
• Master Product Group: Contaminant Control Products
• Product Group: Sealed Filter-Driers
• Item Class: HT PUMP C-A'S
• Harmonized Code: 8421.29.0065
• Pieces Per Case: 25
• Case Weight: 49.30 lbs
• Case Length: 16.00 inches
• Case Width: 16.00 inches
• Case Height: 9.50 inches
• Cases Per Pallet: 24
• Cases Per Layer: 6
• Pallet Weight: 1,212.80 lbs
• Pallet Length: 48 inches
• Pallet Width: 40 inches
• Pallet Height: 42 inches
• Series-Brand: Catch-All
• Vendor: Sporlan Valves
