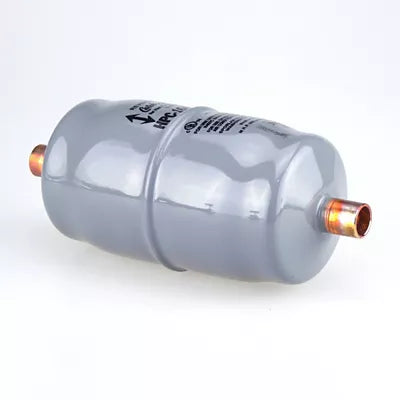

Parker Sporlan 404241 Sporlan - HPC-164-S-HH 1/2 inch ODF Liquid Line Reversible Heat Pump Filter-Drier

Product Description

The Parker Sporlan HPC-164-S-HH Liquid Line Reversible Heat Pump Filter-Drier is a crucial component for maintaining efficient HVAC systems. This filter-drier utilizes a unique molded porous core, blending highly effective desiccants to ensure optimal moisture removal and contaminant filtration.

• Exceptional water removal due to specially formulated desiccant blend
• Superior filtration capability, removing dirt, scale, and organic acids efficiently
• Durable design with epoxy powder-coated shells for corrosion resistance

Product Highlights

This product offers enhanced flow capacities tailored for modern system sizes and operates in both flow directions with minimal pressure drop. Its robust metal check valve and large core size are designed for superior filtration performance and are particularly advantageous for R-410A/POE lubricant systems. Approved by Underwriters Laboratories, this filter-drier stands up to 650 psi for R-410A systems.

Product Information

Standard Information

• Brand: Parker Sporlan
• MPN: 404241

Technical Specifications

• Connection Type: Sweat or Braze
• Refrigerant Capacity: 7.8 Tons at 1 psi △P for R-407C, 8.3 Tons at 1 psi △P for R-410A
• Width: 3.125 inches
• Height: 3.125 inches
• Length: 9 inches
• Weight: 1.9 pounds
• Special Applications: Low temperature refrigeration systems and cap tube systems compatibility
