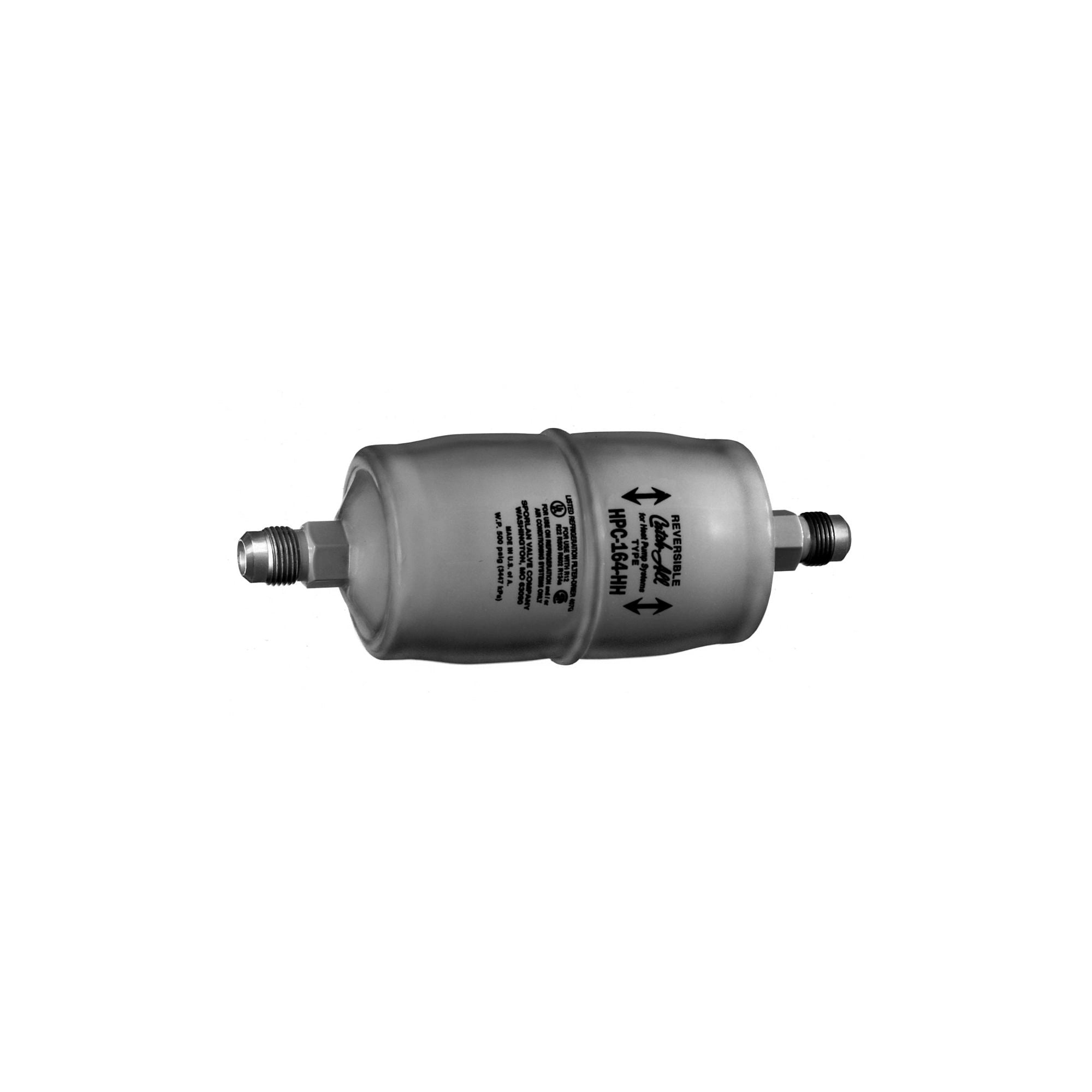

Parker Sporlan 404220 HPC-164-HH 1/2 inch SAE Liquid Line Reversible Heat Pump Filter-Drier

Product Description

The Parker Sporlan HPC-164-HH is a 1/2 inch SAE liquid line reversible heat pump filter-drier designed for superior performance in refrigeration systems. It features a unique molded porous core made from a blend of effective desiccants, engineered for maximum moisture and acid removal, and extensive filtration capacity.

• Exceptional moisture removal via adsorption in the desiccant granules.
• Highly effective in filtering out foreign materials such as scale, solder particles, and sludge with minimal pressure drop.
• Advanced acid removal capabilities superior to competitive models, ensuring system longevity.

Product Highlights

This filter-drier operates efficiently in any flow direction, thanks to its robust metal check valve and reversible flow feature. It is coated with epoxy powder to prevent corrosion under harsh conditions and is designed with a large molded core, making it especially beneficial for R-410A/POE lubricant systems.

Product Information

Standard Information

• Brand: Parker Sporlan
• MPN: 404220
• Refrigerant Compatibility: R-22, R-407C, R-410A

Technical Specifications

• Connection Type: Flare
• Inlet/Outlet Size: 1/2 inch
• Weight: 2.04 lbs
• Length: 9 inches
• Width: 3.25 inches
• Height: 3.25 inches
• Country of Origin: USA
• Prop 65: Yes
