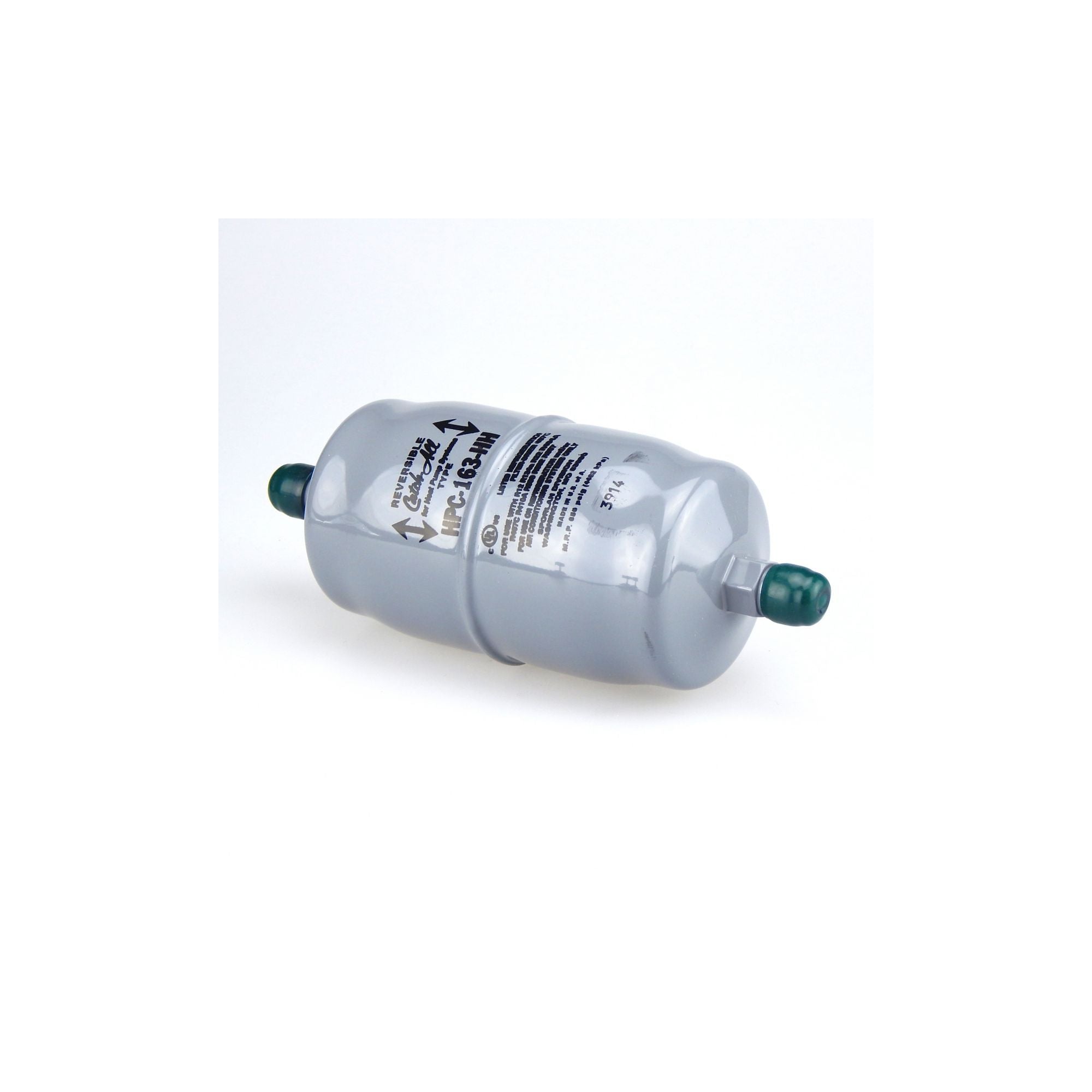

Parker Sporlan 404180 HPC-163-HH Heat Pump Filter-Drier Reversible Liquid Line 3/8 SAE

Product Description

The Parker Sporlan HPC-163-HH is a liquid line reversible heat pump filter-drier, designed for robust moisture and acid removal in refrigeration systems. This unit features a unique molded porous core with a blend of highly effective desiccants, ensuring longevity and performance.

• Exceptional filtration capacity to trap moisture, acids, and fine particulate matter.
• Operates efficiently in both flow directions, minimizing pressure drops.
• Durable construction with epoxy powder coated shells for corrosion resistance.

Standard Information

The HPC-163-HH model is built to accommodate both high and low temperature refrigeration systems, incorporating a reversible flow direction that maintains trapped particles when the flow is reversed. Its rugged metal check valve is designed for high flow capacity, while the core structure supports intensive cleaning and maintenance tasks, particularly in systems using HCFC and HFC refrigerants.

Technical Specifications

Connection Type: 3/8 inch SAE Flare

Refrigerant Compatibility: R-22, R-407C, R-410A

Dimensions: Length: 9 inches, Width: 3.125 inches, Height: 3.125 inches

Weight: 1.96 pounds

UL Listed: Suitable for up to 650 psi for R-410A systems
