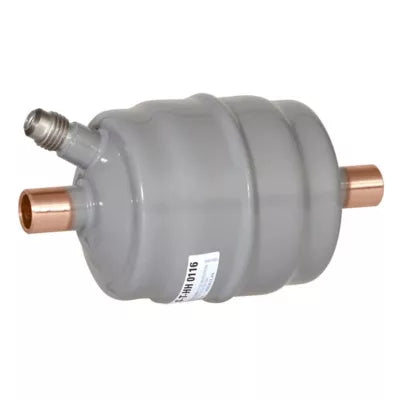

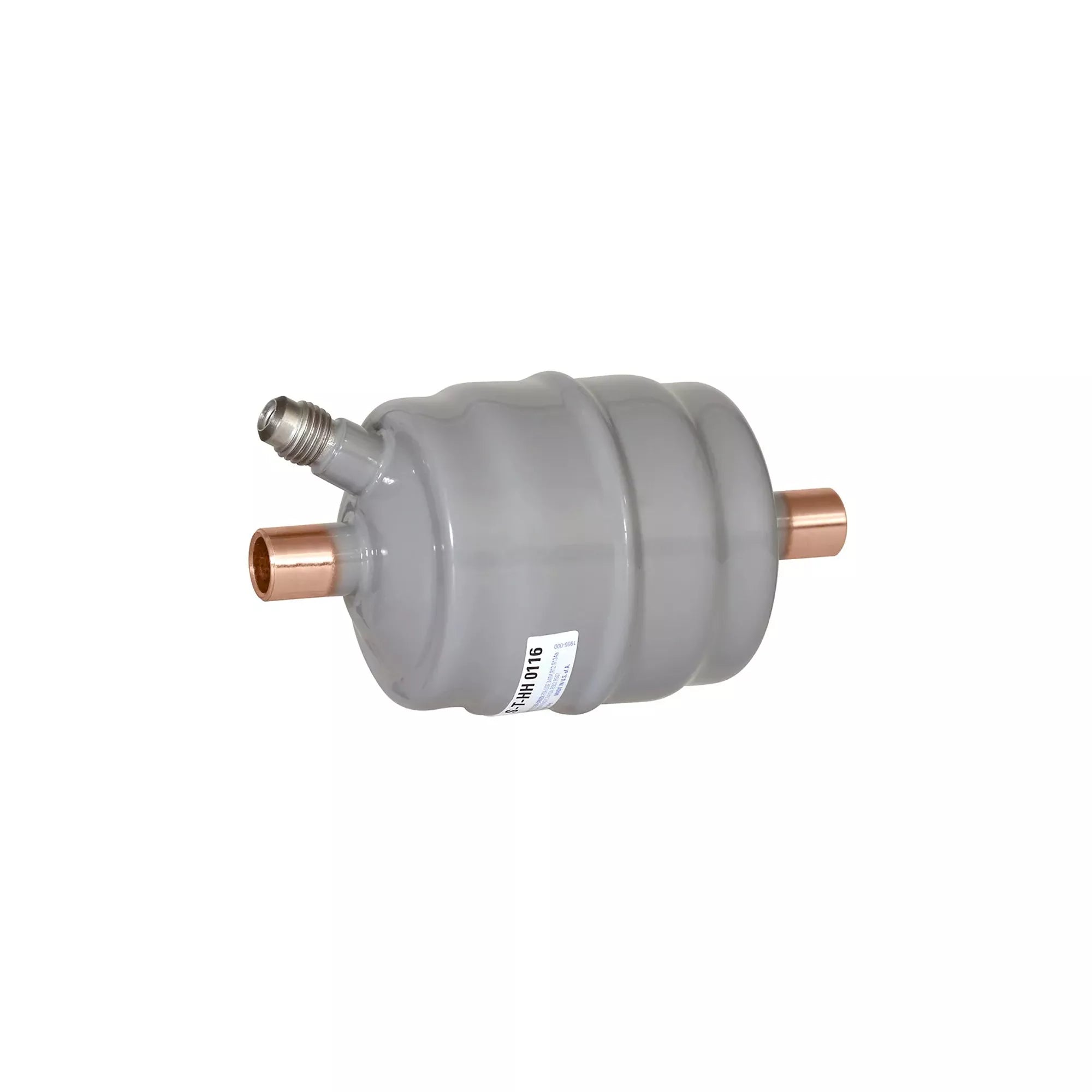

Parker Sporlan 401816 C-4311-S-T-HH 1-3/8 Inch ODF Suction Line Filter Drier

Product Description

The Parker Sporlan 401816 C-4311-S-T-HH Suction Line Filter Drier is designed for superior performance in refrigeration systems. Manufactured with a unique molded porous core, this filter drier effectively removes moisture and acid from refrigerants, enhancing system reliability.

• Effective moisture and acid removal
• Robust filtration of foreign particles
• Special HH core for low temperature applications

Product Highlights

This suction line filter drier uses a special blend of desiccants formulated for exceptional water removal. It excels in cleaning up severely contaminated systems by removing foreign matter such as scale, solder particles, carbon, and more with minimal pressure drop. Its acid removal capabilities are superior compared to competitive products.

Product Information

Standard Information

• Brand: Parker Sporlan
• MPN: 401816
• Connection Type: Sweat or Braze
• Refrigerant Compatibility: R-404A, R-407A, R-407C, R-407F, R-410A, R-507A

Technical Specifications

• Height: 5.25 inches
• Length: 12.25 inches
• Width: 5.25 inches
• Weight: 7.6688 pounds
• Prop 65: Yes
• Connection Sizes: 1-3/8 inch ODF inlet and outlet
