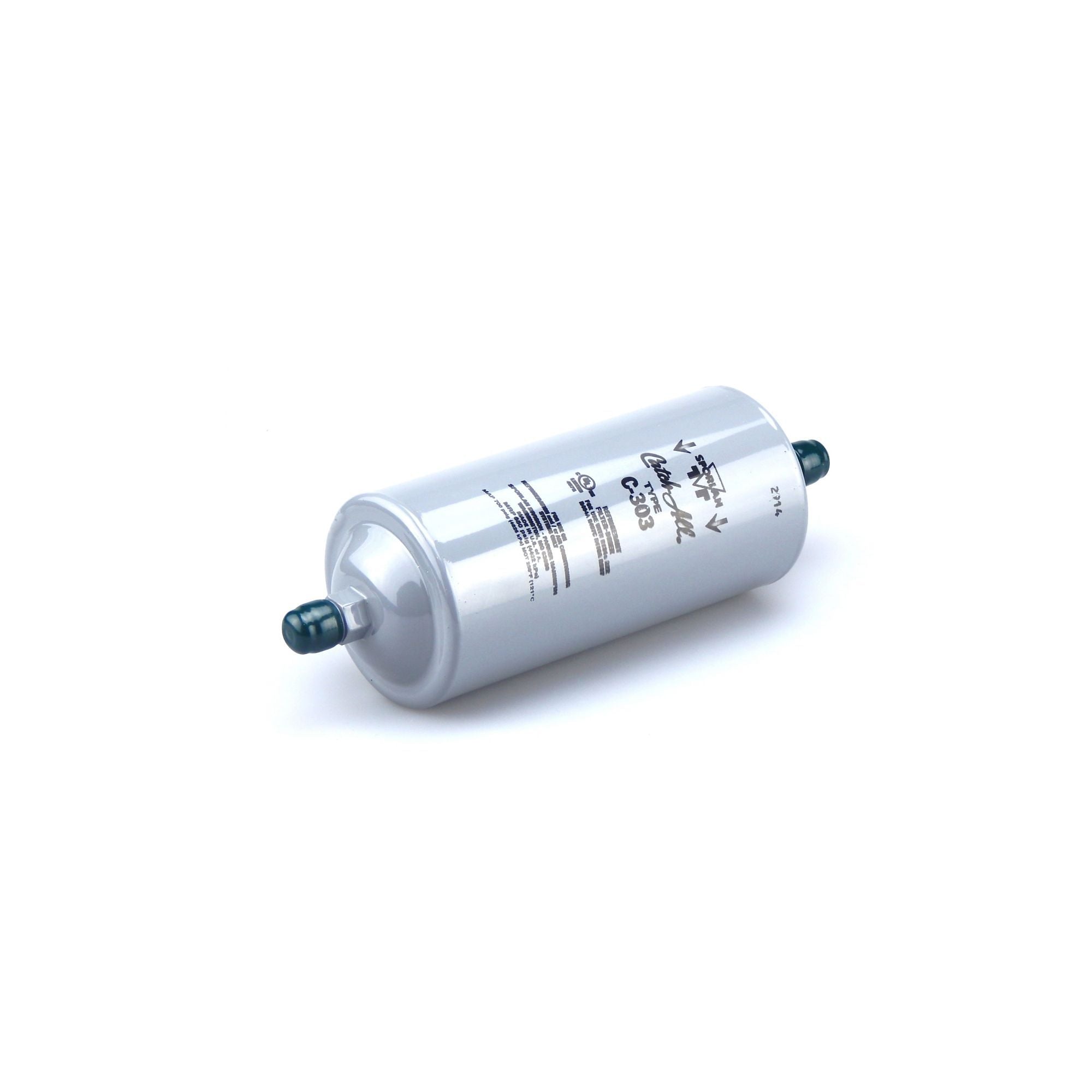

Parker Sporlan 401328 C-303 3/8 inch SAE Liquid Line Filter Drier

Product Description

Parker Sporlan's 401328 C-303 model, a 3/8 inch SAE liquid line filter drier, stands out in the HVACR industry for its advanced moisture, acid, and foreign matter removal capabilities. Manufactured to provide unsurpassed protection for refrigeration systems, this product uses a specially formulated blend of desiccants within its molded porous core for effective performance.

• Effective moisture removal from refrigerant with deep adsorption technology.
• Superior filtration ability to remove particles such as scale, solder, and sludge with minimal pressure drop.
• Highly effective at removing acids and products of oil decomposition, ensuring system cleanliness and efficiency.

Product Highlights

The C-303 model is specifically designed to cope with various contaminants that can typically degrade the performance of refrigeration systems. It provides an extensive dirt-catching capability, thanks to its large filter area, and excels at acid removal when compared to other driers.

Product Information

Standard Information

• Brand: Parker Sporlan
• MPN: 401328
• Usage: For refrigeration systems needing protection against moisture and contaminants
• Special Applications: Suitable for low temperature systems and capillary tube attachments

Technical Specifications

• Connection Type: Flare
• Line Drier Type: Liquid Line Uni-Flo
• Inlet Connection Size: 3/8 inch
• Outlet Connection Size: 3/8 inch
• Package Dimensions: Length 13 inches, Width 12.75 inches, Height 6.75 inches
• Weight: 3.36 lbs
• Refrigerant Type: R-134a, R-22, R-407A, R-407C, R-407F, R-410A, R-507A
