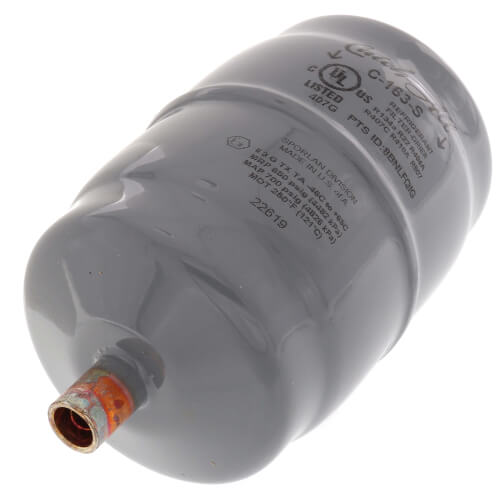

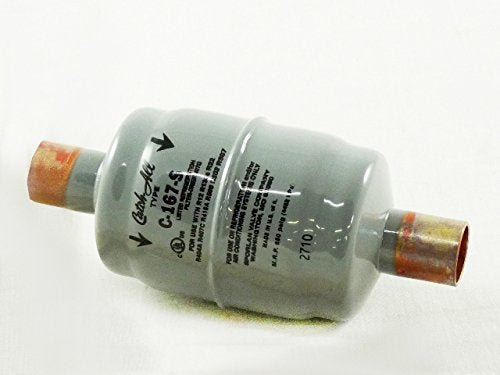

Sporlan 401031 C-167-S Liquid Line Filter-Drier 7/8 Inch ODF Solder 3/4 to 5 Ton

Product Description

The Sporlan 401031 C-167-S Liquid Line Sealed Model Filter-Drier is engineered to provide superior contaminant control in HVAC& R systems. This product efficiently captures moisture, acids, and solid debris, enhancing the longevity, efficiency, and capacity of air conditioning and refrigeration systems.

• High-performance desiccant package for optimal moisture and acid capacity
• Porous molded core for effective solid debris filtration
• Compatible with HCFC, HFC, HFO, and HC refrigerants

Product Highlights

Equipped with a range of sizes and fitting configurations, the Sporlan Filter-Drier is suitable for systems up to 20 tons. Its integrated sightglass allows for easy monitoring of refrigerant conditions.

Product Information

Standard Information

• Brand: Sporlan
• Model: C-167-S
• MPN: 401031

Technical Specifications

• Connection Size: 7/8 inch ODF Solder
• Cubic Inches: 16
• Refrigerant Type: R-407F, R-407C, R-507, R-407A, R-404A, R-410A
• UL Listed: 650 psig rated pressure
• Compliance: RoHS, REACH, ATEX, PED
