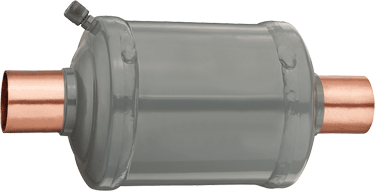

Sporlan 401030 Catch-All Filter-Driers 3/4ODF Suction Line

Product Description

The Sporlan 401030 Catch-All Filter-Driers are designed to protect your refrigeration system. Engineered for optimal performance, these filter-driers feature a leak-proof shell and solid copper sweat fittings. They are equipped with an outlet safety filter and a molded porous core made from a blend of desiccants for effective acid and moisture removal.

• Leak-proof shell
• Solid copper sweat fittings
• UL Listed

Product Highlights

The Sporlan 401030 Catch-All Filter-Driers effectively remove scale, solder particles, carbon, sludge, dirt, and other foreign matter with minimal pressure drop. They absorb and retain moisture and acid deep within the desiccant granules. Ideal for use with all HCFC and HFC refrigerant/lubricant combinations, these filter-driers provide maximum performance and reliability.

Product Information

Standard Information

• Brand: Sporlan Valves
• MPN: 401030
• Series: Catch-All

Technical Specifications

• Capacity: 16 cu in
• Connection Ends: ODF
• Size: 3/4
• Length: 7.8 inches
• Width: 3.1 inches
• Height: 3.1 inches
• Diameter: 3.00 inches
• Vendor: Sporlan Valves
• Items Per Case: 25
• Weight Per Case: 42.20 lbs
