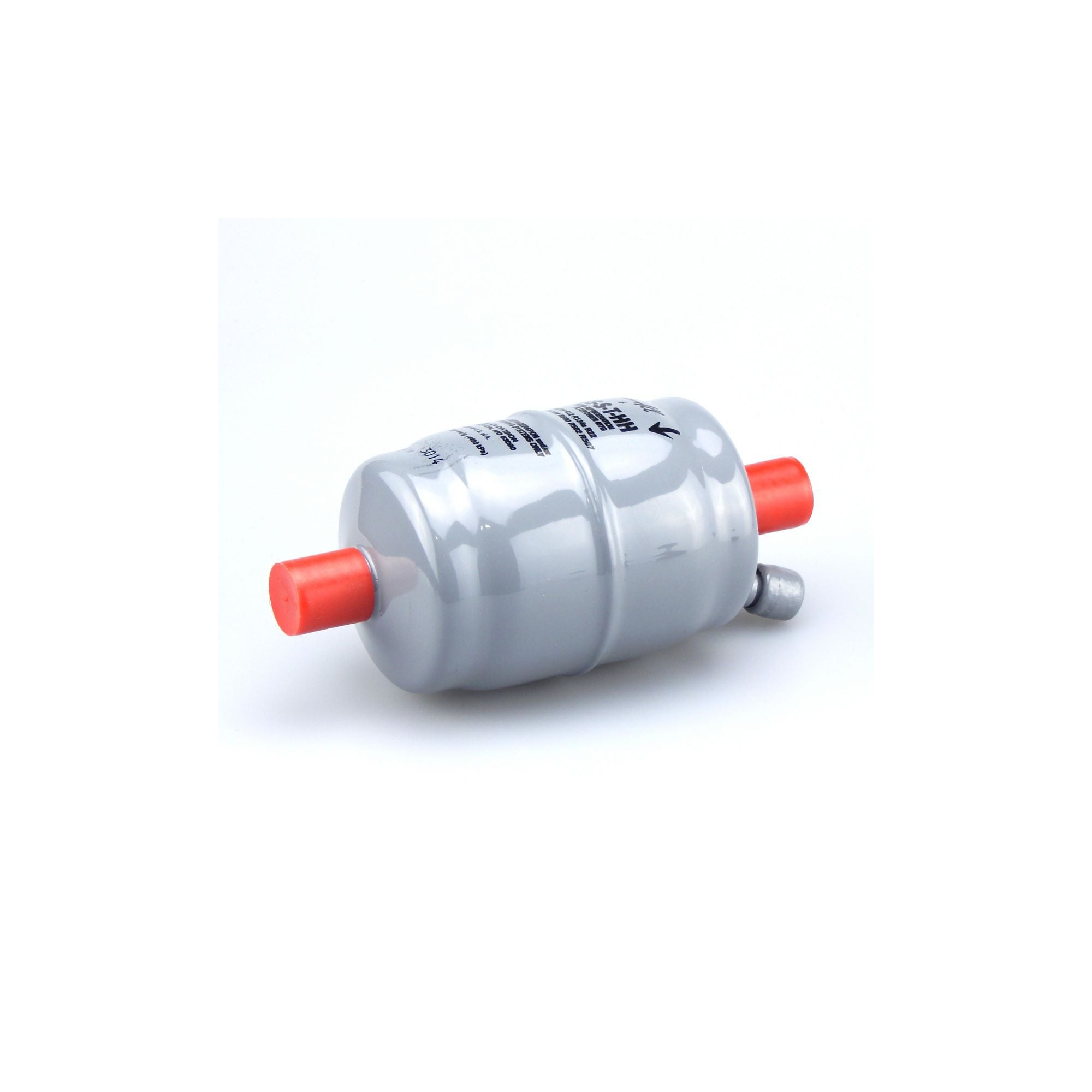

Parker Sporlan 401029 C-165-S-T-HH 5/8 Inch ODF Suction Line Filter Drier

Product Description

The Parker Sporlan Catch-All Filter-Drier, model 401029, integrates a molded porous core with a superior blend of desiccants designed for effective moisture and acid removal from refrigeration systems.

• Effective moisture adsorption ensures system's longevity
• Filters foreign particles such as scale and solder with minimal pressure drop
• Special HH core available for low-temperature systems needing wax removal

Product Highlights

This suction line filter drier is built to withstand severe contaminants commonly found in refrigeration systems. Its ability to clean and prevent system degradation improves system reliability and efficiency.

Product Information

Standard Information

• MPN: 401029
• Brand: Parker Sporlan
• Connection Type: Sweat or Braze

Technical Specifications

• Width: 3.125 inches
• Height: 3.125 inches
• Length: 7.75 inches
• Weight: 1.58 lbs
• Refrigerants: R-134a, R-22, R-407A, R-407C, R-407F, R-410A, R-507A
