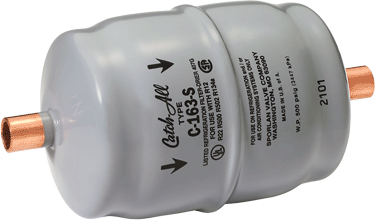

Sporlan 401018 Catch-All Filter-Drier 1/4 inch Sweat Seal

Product Description

The Sporlan 401018 Catch-All Filter-Drier is a critical component designed for HVAC systems, ensuring clean and effective operation. This unit features solid construction with a moldable porous core of blended desiccants, ideal for absorbing and retaining unwanted particles like moisture and acids from refrigerant.

• Leak-proof shell enhances system reliability.
• Equipped with solid copper sweat fittings for robust, leak-free connections.
• Outfitted with an outlet safety filter to capture residual particulates.

Product Highlights

This sealed type filter-drier functions across all HCFC and HFC refrigerant/lubricant combinations and is suitable for high-pressure applications up to 650 psi. It's particularly effective in systems using capillary tubes, thanks to its specific design adaptations.

Product Information

Standard Information

• Capacity: 16 cu inches
• Connection Ends: ODF
• Length: 7.8 inches
• Width: 3.1 inches
• Height: 3.1 inches

Technical Specifications

• Diameter: 3.00 inches
• Pieces Per Case: 25
• Case Weight: 39.15 pounds
• Series-Brand: Catch-All
• Product Group: Sealed Filter-Driers
