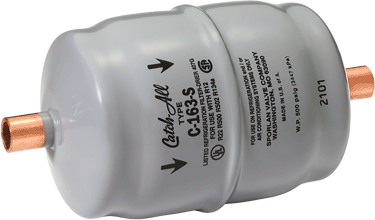

SPORLAN 400416 Catch-All Filter-Drier 1/4 Inch SAE 8 Cu In

Product Description

The SPORLAN Catch-All Filter-Drier, model 400416, is an essential component for HVAC and refrigeration systems. It functions to filter out contaminants such as acids, moisture, scale, solder particles, and sludge while maintaining minimal pressure drop across the system.

• Leak-proof shell with solid copper sweat fittings.
• Molded porous core of blended desiccants ensures maximum moisture and acid absorption.
• UL Listed and designed for all HCFC and HFC refrigerant/lubricant combinations.

Product Highlights

This Catch-All Filter-Drier comes equipped with a Schrader type pressure tap, enabling easy system monitoring and maintenance. Its robust construction ensures long-term reliability in commercial settings.

Product Information

Technical Specifications

• Capacity: 9 cubic inches
• Connection Type: 1/4 inch SAE
• Maximum Working Pressure: 650 psi
• Dimensions: Length 7.1 inches, Diameter 2.62 inches
• Series-Brand: SPORLAN Catch-All
