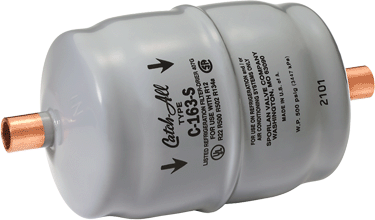

Sporlan 400209 Catch-All Filter-Drier 1/4ODF Liquid Line Replacement

Product Description

The Sporlan 400209 Catch-All Filter-Drier is a reliable choice for refrigeration systems. It features a leak-proof shell and solid copper sweat fittings. The filter-drier includes an outlet safety filter and a molded porous core made of blended desiccants for maximum containment and moisture removal. It effectively filters out scale, solder particles, carbon, sludge, dirt, and more with negligible pressure drop.

• Leak-proof shell
• Solid copper sweat fittings
• Outlet safety filter

Product Highlights

Designed for use with all commercially available HCFC and HFC refrigerant and lubricant combinations. The Sporlan Catch-All Filter-Drier removes moisture and acid from the refrigerant by absorbing and retaining it deep within the desiccant granules.

Product Information

Standard Information

• Brand: Sporlan Valves
• Model: 400209
• Type: Catch-All Filter-Drier

Technical Specifications

• Capacity: 5 cu in
• Connection Ends: ODF
• Size: 1/4
• Length: 5.8
• Width: 2.5
• Height: 2.5
• Diameter: 2.44
• Master Product Group: Contaminant Control Products
• Product Group: Sealed Filter-Driers
• Item Class: C-050'S HH CORE
• Price Group: CAH
• Harmonized Code: 8421.29.0065
• Pieces Per Case: 25
• Case Weight: 19.07
• Case Length: 13.00
• Case Width: 13.00
• Case Height: 6.50
• Cases Per Pallet: 54
• Cases Per Layer: 12
• Pallet Weight: 1,080.00
• Pallet Length: 48
• Pallet Width: 40
• Pallet Height: 50
• Series-Brand: Catch-All
• Vendor: Sporlan Valves
