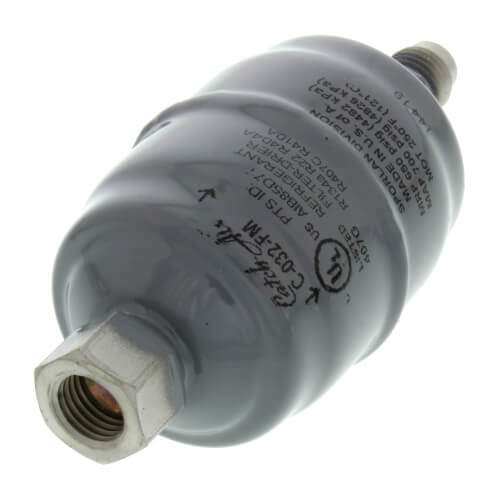

Sporlan 400032 Catch-All Filter-Drier 1/4 SAE FlrNutxM Liquid Line C-032FM Catch-All

Product Description

The Sporlan 400032 Catch-All Filter-Drier is designed to remove moisture, acids, and solid debris from HVAC and refrigeration systems. This filter-drier supports systems with a capacity of up to one half ton, featuring a solid leak-proof shell and a molded core characterized by a blend of desiccants. It ensures maximum moisture absorption, which is essential for maintaining system efficiency and longevity.

• Leak-proof shell for durability
• Solid copper sweat fittings for reliable connections
• UL Listed for safety and performance

Product Highlights

The Catch-All Filter-Drier effectively filters out contaminants while minimizing pressure drop, ensuring smooth operation of HVAC systems.

Product Information

Standard Information

• Brand: Sporlan Valves
• Product Type: Filter-Drier

Technical Specifications

• Maximum Working Pressure: 650 psi
• Connection Type: 1/4 SAE Flare
• Capacity: 3 cu in
• Length: 5 inches
• Width: 1.8 inches
• Height: 1.8 inches
• Diameter: 1.75 inches
• Item Class: C-030'S
• Pallet Weight: 1,153.20 lbs
