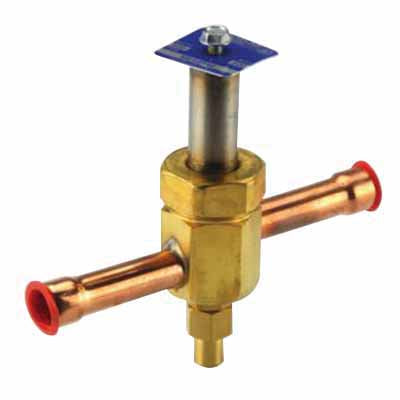

Parker Sporlan 3396-00 Solenoid Valve ME9S240 LESS COIL

Parker Sporlan 3396-00 Solenoid Valve ME9S240 LESS COIL

Description:
Parker Sporlan Solenoid Valves are made in two general types, normally closed and normally open. The normally closed types may be further sub-divided into direct acting and pilot operated types. All Parker Sporlan solenoid valves are designed for liquid, suction and discharge gas applications.

Feature:
Can be mounted in a horizontal or vertical line.
Molded coil for all sizes.
Class F temperature rating -Coil types MKC-1, OMKC-1, MKC-2 and OMKC-2.
Extremely rugged, simple design -few parts.
E Series may be brazed without disassembly.
Tight closing through use of synthetic seating material.

Description:
Weight: 0.900000
Brand: Parker Parker Sporlan
Connection Size: 1/2
Connection Type: Sweat
Dimensional Weight: 1.000000
Cubic Measurement: 0.046300
Height: 2.750000
Length: 8.000000
Maximum Working Pressure: 650 psi
Package Length: 17.000000
Valve Type: Normally Closed
Width: 5.750000
