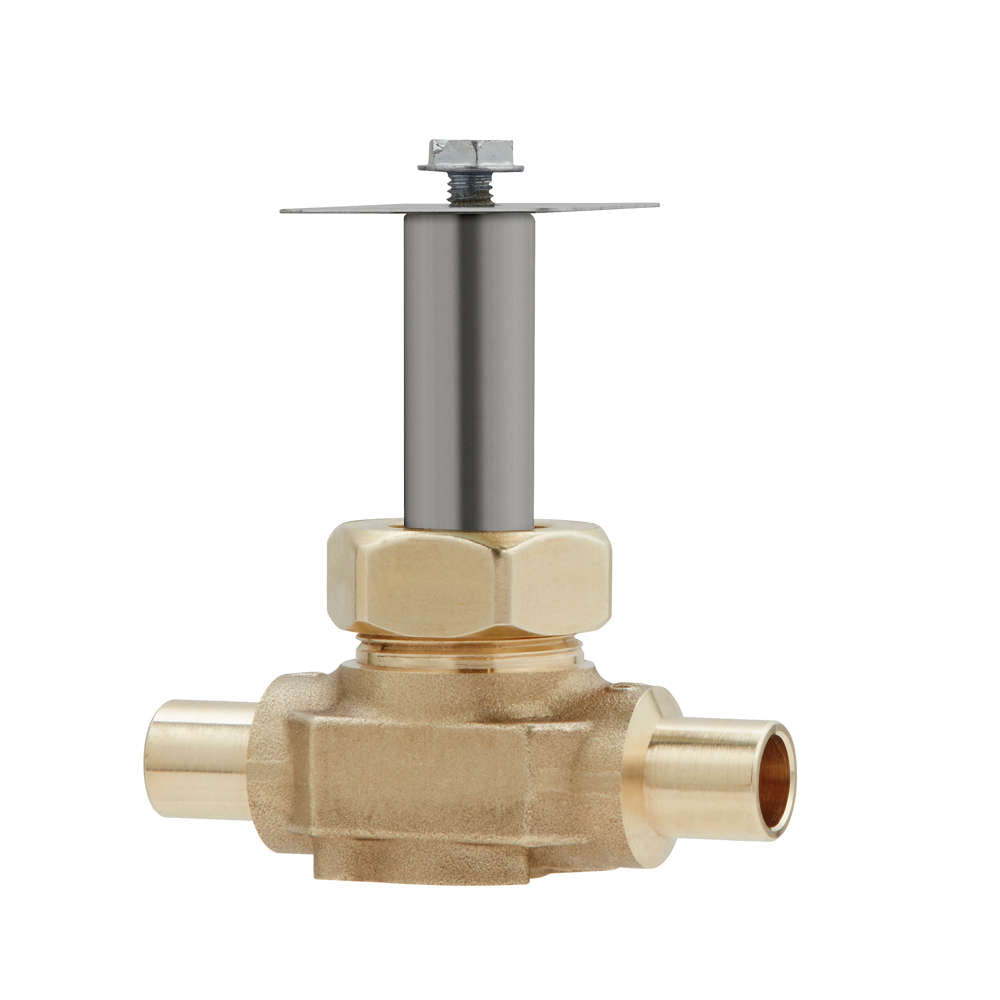

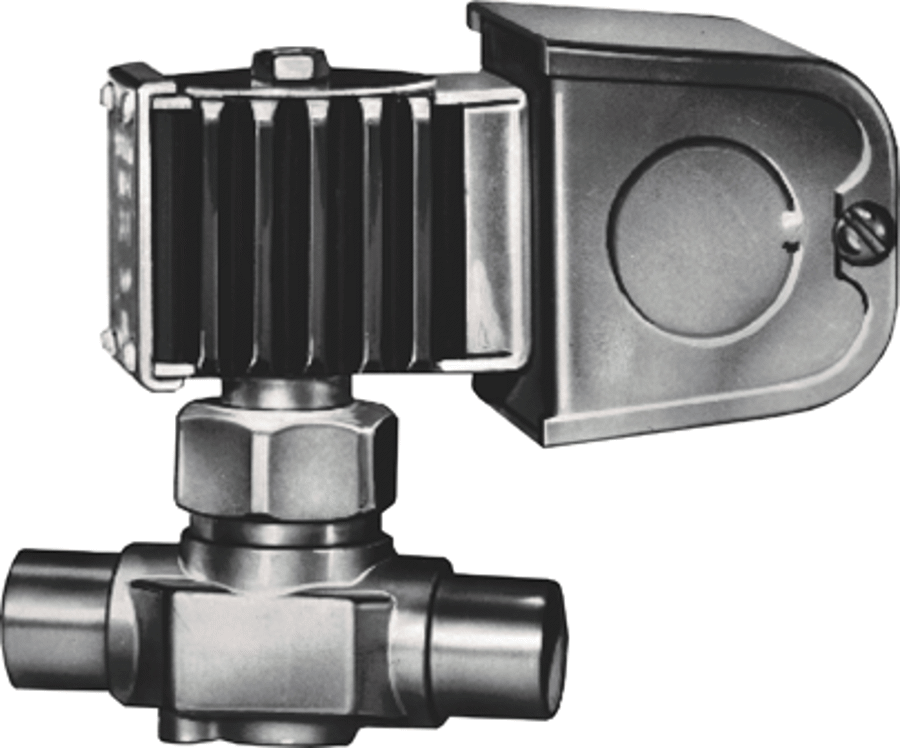

SPORLAN 3254-00 Solenoid Valve 3/8 Inch ODF Normally Closed

Product Description

The SPORLAN 3254-00 Solenoid Valve is a compact, pilot-operated device designed for use in refrigeration and air conditioning systems. This model, recognized for its reliability and efficiency, operates as a normally closed (NC) valve, opening when the coil is energized and closing when it is de-energized.

• Designed for seamless integration into refrigeration units.
• Capable of operating in various orientations including horizontal and vertical configurations.
• Suitable for suction line service with minimal pressure differential required for operation.

Product Highlights

This valve features extended solder type connections as standard, allowing for installation without the need for disassembly. It is compatible with a variety of refrigerants, including R-22, R-134A, and more.

Technical Specifications

• Model: 3254-00
• Size: 3/8 inch ODF
• Operation: Normally Closed
• Mounting: Can be mounted in multiple positions
• Construction: Metal body with synthetic coated metal gaskets to minimize leaks
• Pressure: Suitable for low pressure differential
• Standards: UL Listed, CSA and CE Certified
