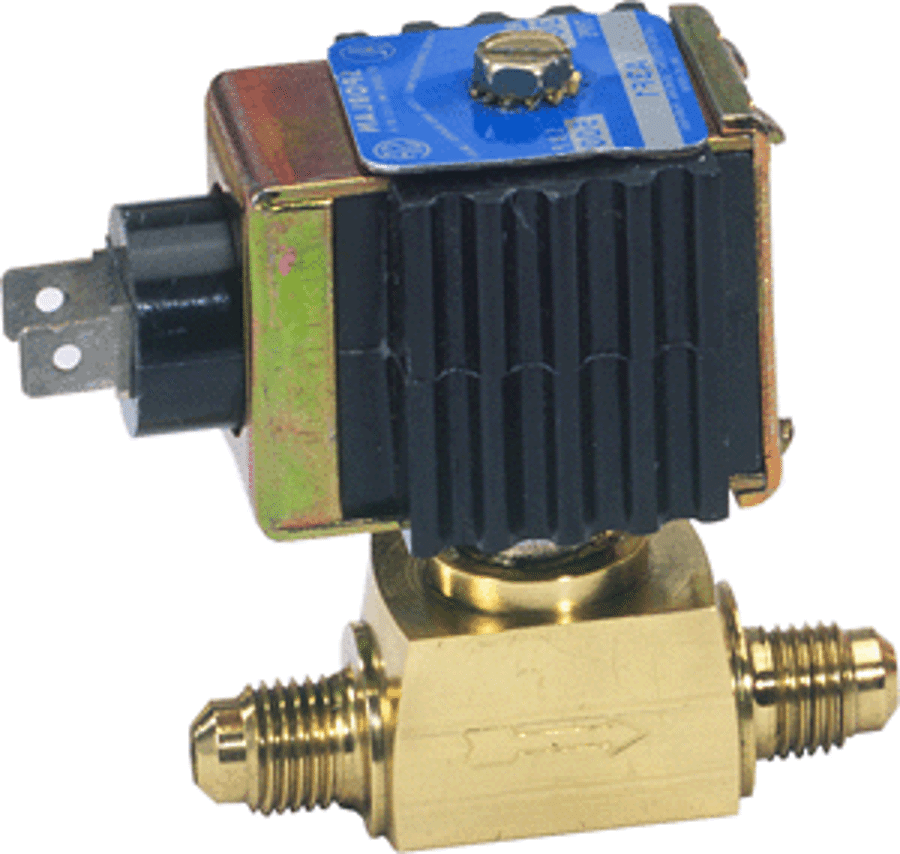

Sporlan 3249-00 Solenoid Valve, 3/8 SAE Flare B6F1 Normally Closed Compact Body Less Coil

Product Description

The Sporlan solenoid valve model 3249-00 is a compact device designed for refrigeration and air conditioning applications. It features a normally closed operation, meaning the valve opens when the coil is energized and closes when de-energized.

• Constructed with brass forged or bar stock for durability.
• Designed for low pressure differential requirements.
• Suitable for various refrigerants including R-22, R-134A, and R-404A.

Product Highlights

This model is specifically engineered for hassle-free installation with extended solder type connections, allowing installation without disassembly.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 3249-00

Technical Specifications

• Size: 3/8 inch
• Connection Ends: SAE Flare
• Material: Metal
• Port Size: 3/16 inch
• Pressure Rating: Maximum 500 psi
• Type: Normally Closed
• Mounting Orientation: Horizontal or Vertical
• Application: Refrigeration and Air Conditioning
