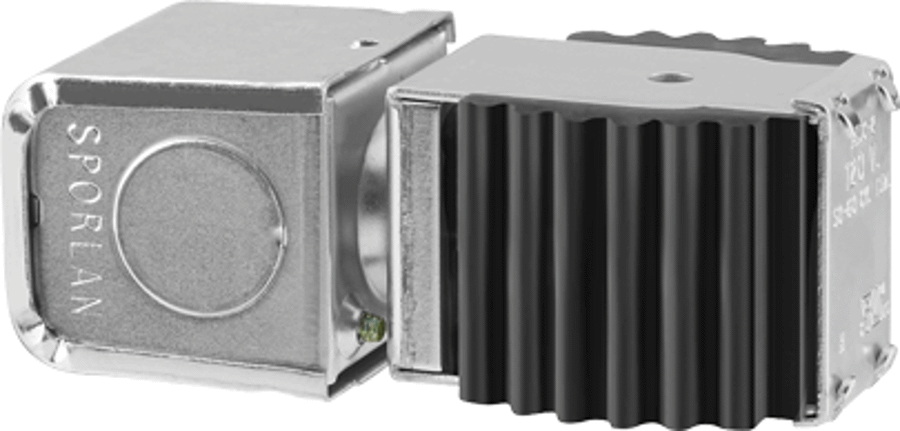

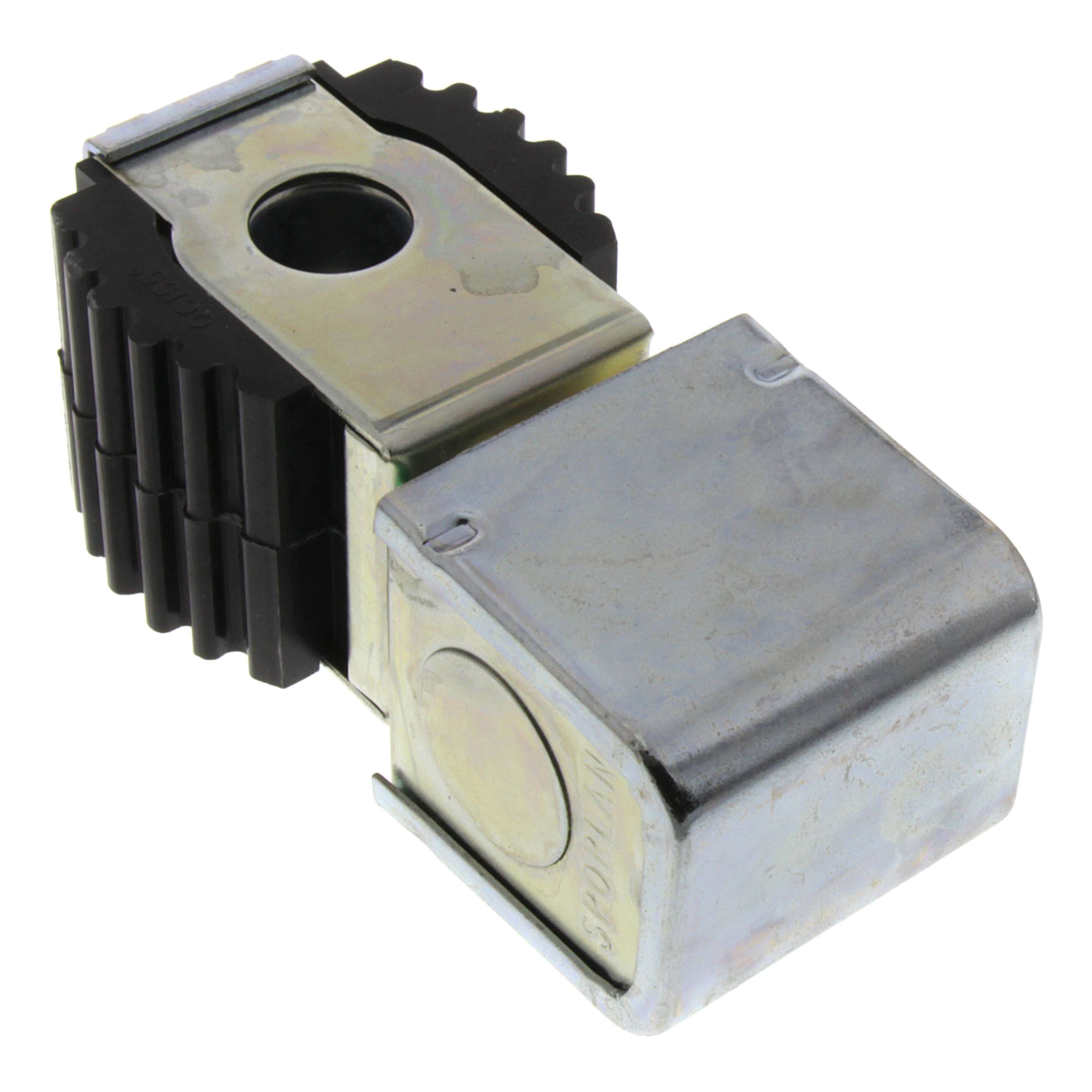

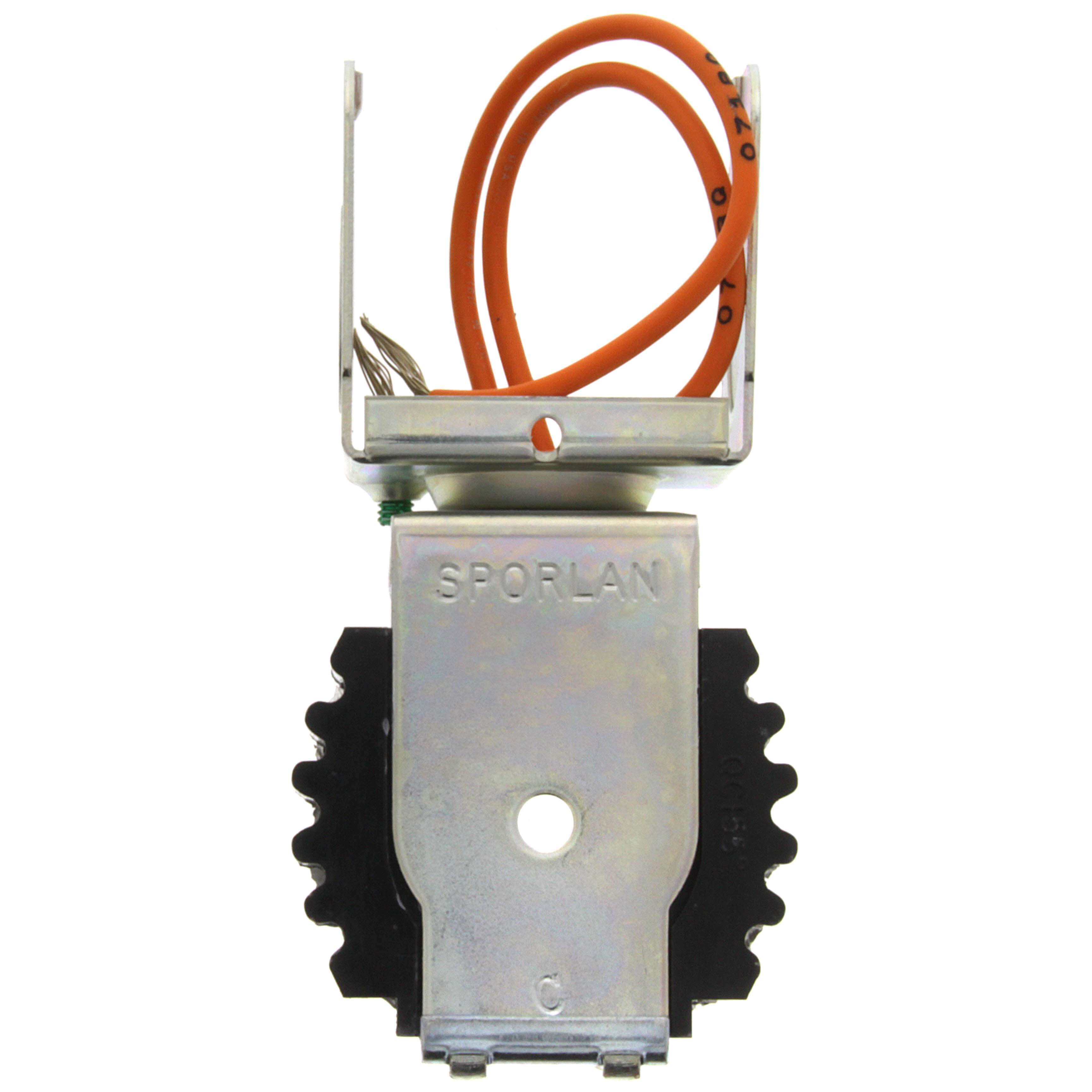

SPORLAN 311710 Solenoid Coil 24V #2 Size with Junction Box Replacement 311710

Product Description

The Sporlan 311710 Solenoid Coil is engineered to convert electrical energy into linear motion, enhancing performance in a variety of applications. This coil is primarily utilized in air conditioning systems, refrigeration units, and industrial applications where precision and reliability are key.

• Durable molded kit design with Class F temperature rating for high thermal resistance.
• Compatible with a wide range of normally closed Sporlan valves, making it a versatile replacement part.
• Equipped with a junction box for secure and organized electrical connections.

Product Highlights

This solenoid coil features a robust insulation of 1/32 inch thickness and operates on a 24V system, suitable for both 50/60Hz configurations. It is designed to fit various Sporlan valve series, making it a flexible solution for system maintenance and upgrades.

Product Information

Standard Information

• Brand: Sporlan
• Model: MKC-2 24/50-60

Technical Specifications

• Size: #2
• Voltage: 24V
• Normally Closed/Open: Normally Closed
• Dimensions (LxWxH): 4.0 x 2.3 x 2.0 inches
• Weight: 0.88 lbs
• Harmonized Code: 8505.90.8000
• Master Product Group: Solenoid Valves
• Product Group: Solenoid Coils
