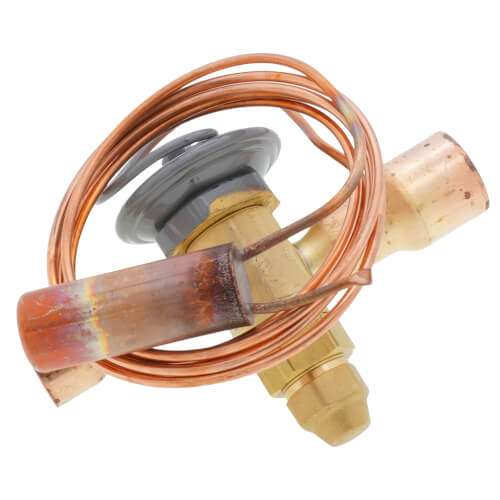

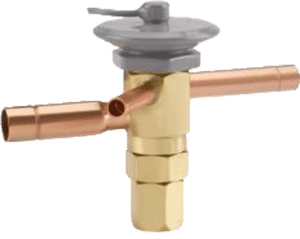

Sporlan 168718 3/8x1/2 R410A 4-Ton TXV Vlv

Product Description

The Sporlan Valve Company 168718 is a thermostatic expansion valve designed for use with R410A refrigerant. This valve has a nominal capacity of four tons, making it well-suited for air conditioning applications. The inlet connection is three eighths of an inch ODF, while the outlet is half an inch ODF.

• Designed for R410A refrigerants
• Nominal capacity of four tons
• Inlet and outlet connections of three eighths inch and half inch ODF

Product Highlights

This valve features an externally equalized straight-thru body and a brass bar stock construction, enhancing the performance and reliability in commercial and residential applications.

Product Information

Standard Information

• Brand: Sporlan Valve Company
• MPN: 168718

Technical Specifications

• Refrigerant: R-410A
• Nominal Capacity: 4 tons
• Inlet Size: 3/8 inch ODF
• Outlet Size: 1/2 inch ODF
• Equalizer Method: Externally Equalized
• Capillary Length: 60 inches
• Maximum Pressure: 700 psi
• Applications: Air Conditioning, Refrigeration
