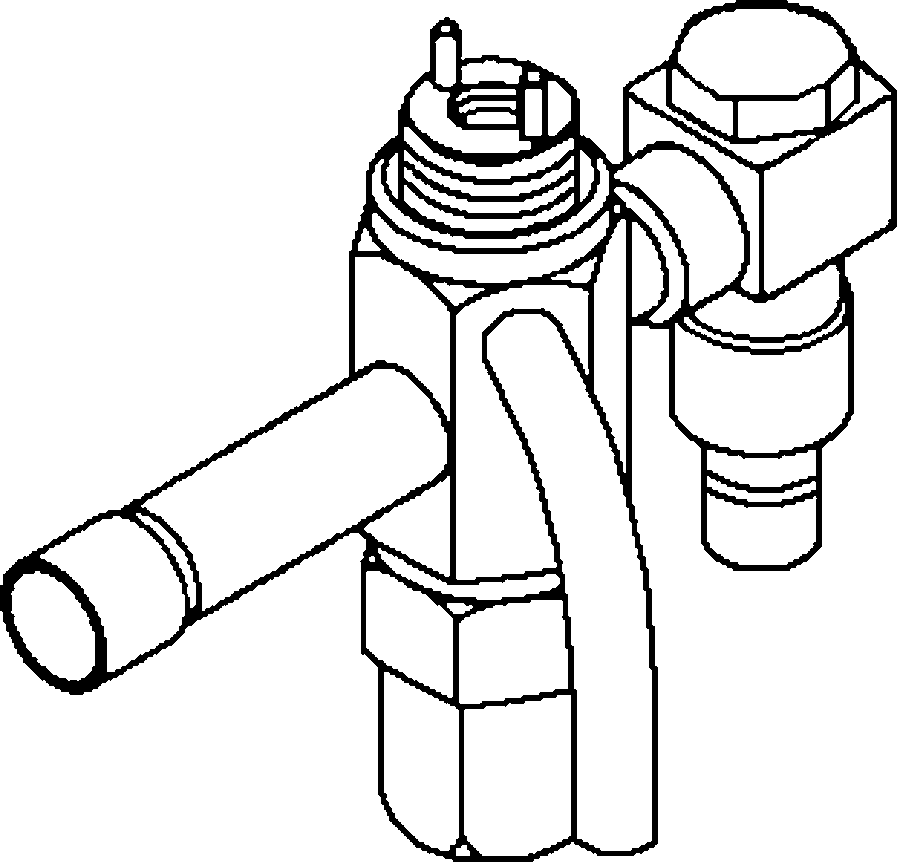

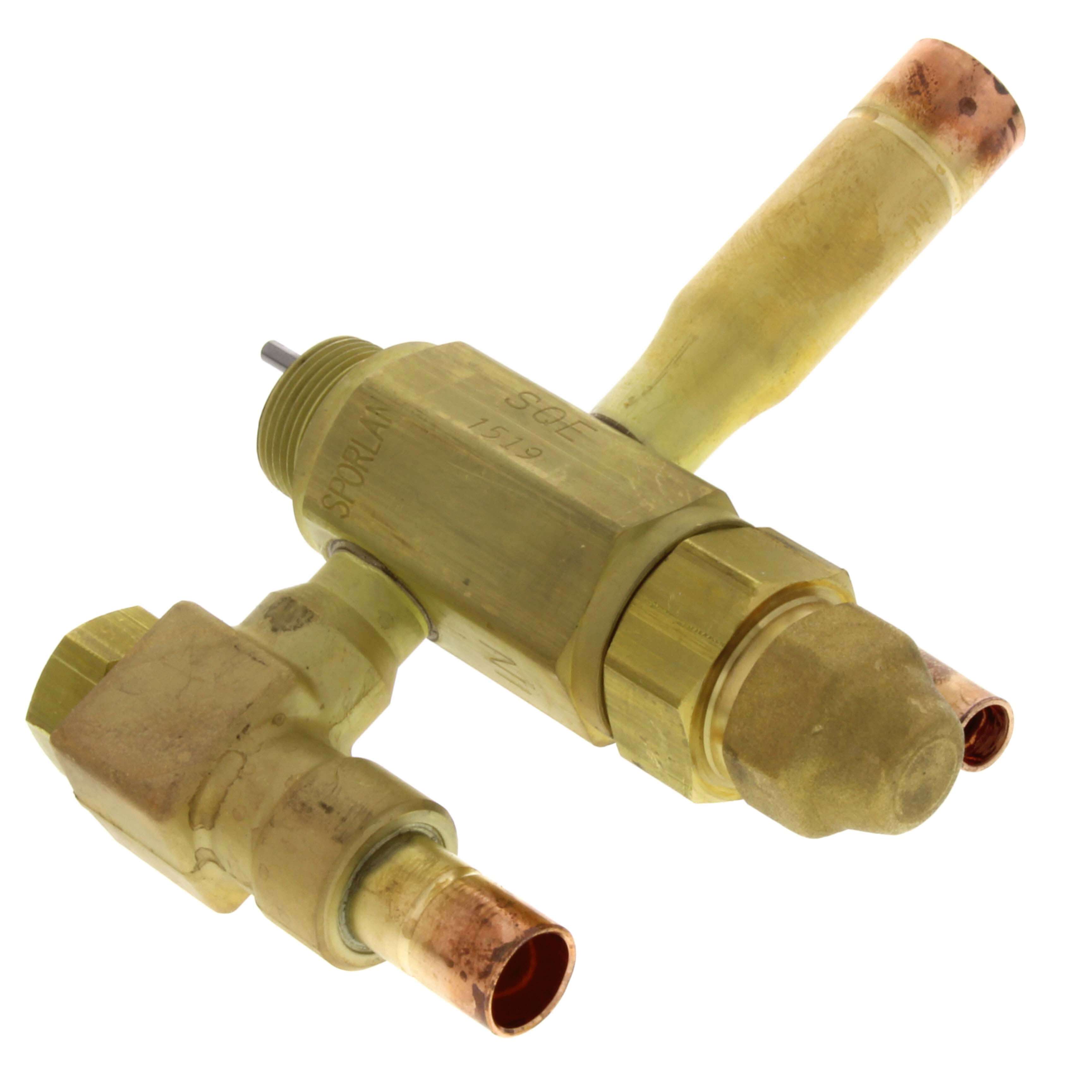

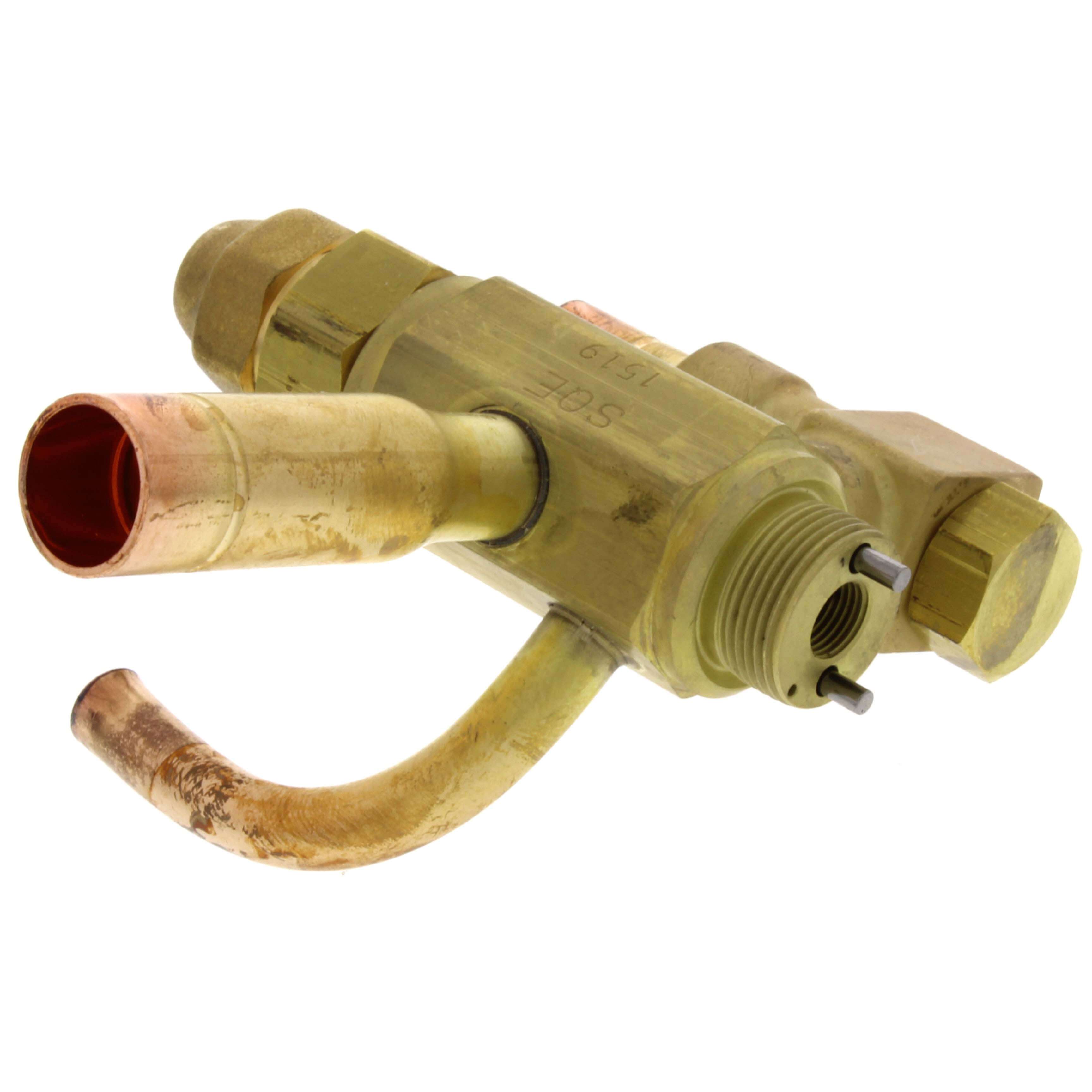

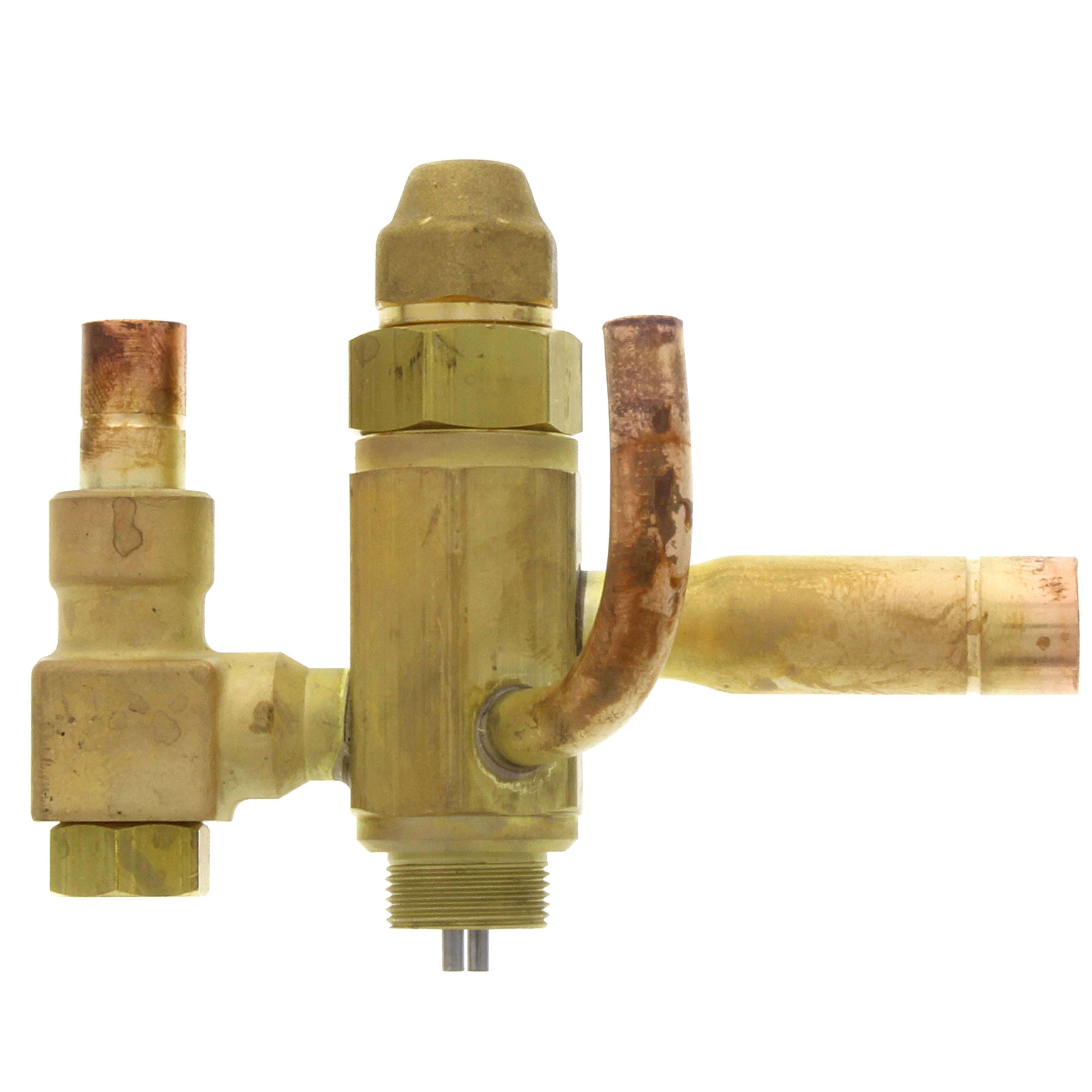

Sporlan 168015 SQE Valve Body 3/8x1/2 ODF Cartridge Style Thermostatic Expansion Valve

Product Description

The Sporlan 168015 SQE Valve Body is crafted to provide reliable and efficient performance in various refrigeration and air conditioning systems. This thermostatic expansion valve features ODF solder connections and a forged brass inlet with a replaceable 100 mesh strainer screen.

• Replaceable cartridge and balanced port design for superior performance.
• Designed for bi-directional applications, suitable for both low and high-pressure environments.
• Thermostatic charges can be tailored to match specific system conditions.

Product Highlights

This valve is ideal for systems with varying operating conditions, offering capacity ranges from 1/8 to 5 ton R-22. It's approved for use in residential, commercial, and transportation air conditioning systems, as well as refrigeration for food retail and industrial food storage units.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 168015

Technical Specifications

• Connection Type: ODF
• Size: 3/8 inch x 1/2 inch x 1/4 inch
• Weight: 0.86 pounds
• External Equalizer: Available
• Operating Pressure: up to 700 psi
• Element Size: 43
• Port Size: 1/4 inch
• Applications: Air conditioning, commercial refrigeration, low temperature refrigeration
