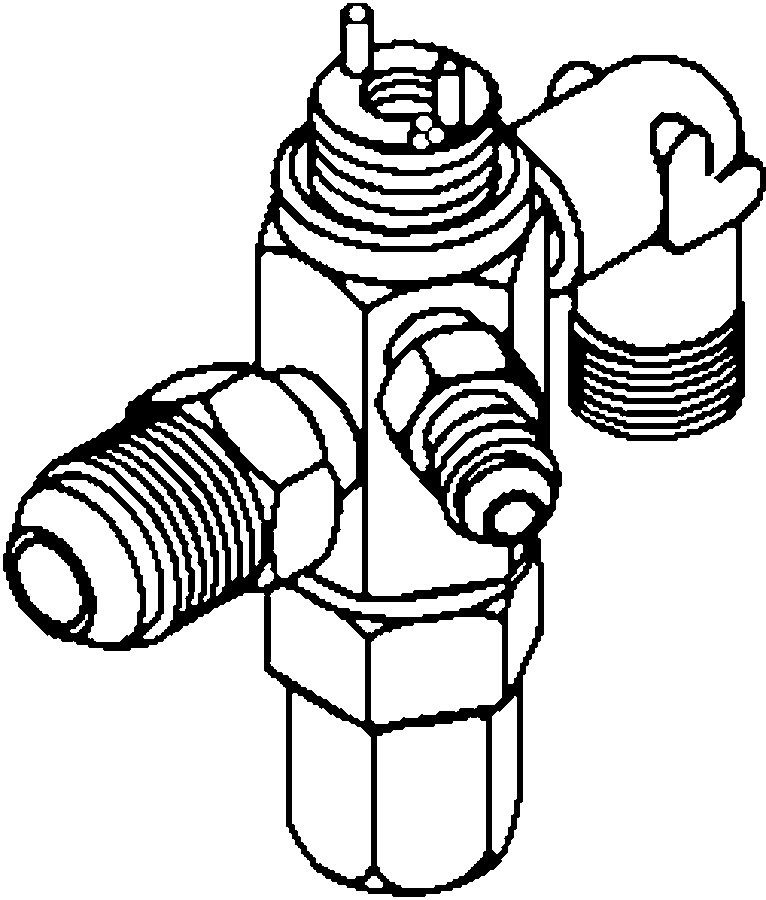

SPORLAN 168005 Thermostatic Expansion Valve Body for HVAC Refrigeration

Product Description

The SPORLAN 168005 is a precision-engineered thermostatic expansion valve body designed for robust HVAC and refrigeration applications. Manufactured by Sporlan Valve Company, this valve body enhances system efficiency and reliability.

• Robust brass construction ensures durability and corrosion resistance.
• External equalizer and replaceable cartridge facilitate easy adjustment and maintenance.
• Designed for air conditioning, commercial refrigeration, and various industrial applications.

Product Highlights

This valve body is specifically built to accommodate 3/8 inch to 1/2 inch SAE connections, suitable for systems with varying conditions. It features an externally adjustable design with a removable cartridge, which simplifies repairs and adjustment processes. The valve supports applications ranging from air conditioning systems to commercial refrigeration and industrial food storage units.

Product Information

Standard Information

• Brand: SPORLAN
• MPN: 168005

Technical Specifications

• Connection Ends: SAE
• Material: Brass
• Size: 3/8 inch x 1/2 inch x 1/4 inch
• Weight: 0.84 lbs
• Length: 2.8 inches
• Width: 4.0 inches
• Height: 3.5 inches
• Equalizer: External
• Operating Pressure: Up to 700 psi for R-410A
