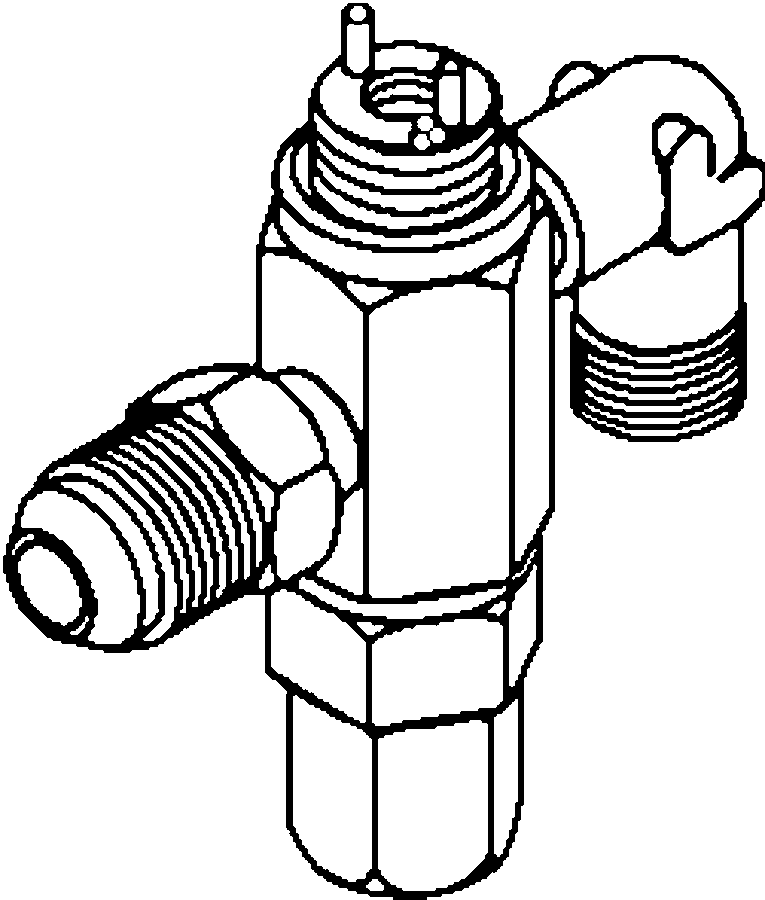

Sporlan 168000 TEV Q Body Power 3/8 x 1/2 SAE Internal Equalizer

Product Description

The Sporlan 168000 TEV Q Body is designed for reliable temperature control in refrigeration systems. It utilizes a 3/8 x 1/2 SAE configuration and features a tube internal equalizer. This valve is essential for optimal heat exchange in air conditioning and refrigeration applications.

• Includes an externally adjustable replaceable brass body.
• Works for commercial refrigeration with a temperature range of 50°F to -10°F.
• Suitable for low temperature refrigeration applications as low as -40°F.

Product Highlights

Ideal for HVAC professionals, this thermostatic expansion valve ensures precise control of cooling and heating processes.

Product Information

Standard Information

• Brand: Sporlan
• Part Number: 168000

Technical Specifications

• Size: 3/8 x 1/2
• Material: Brass
• Connection Ends: SAE
• Equalizer: Internal
• Length: 2.8 inches
• Width: 4.0 inches
• Height: 3.5 inches
• Item Class: TEV-Q
• Master Product Group: Thermostatic Expansion Valves
• Product Group: Refrigeration TEVs
• Harmonized Code: 8481.90.9060
• Pieces Per Case: 24
• Case Weight: 21.20 lbs
• Case Length: 14.50 inches
• Case Width: 13.00 inches
• Case Height: 6.25 inches
• Vendor: Sporlan Valves
