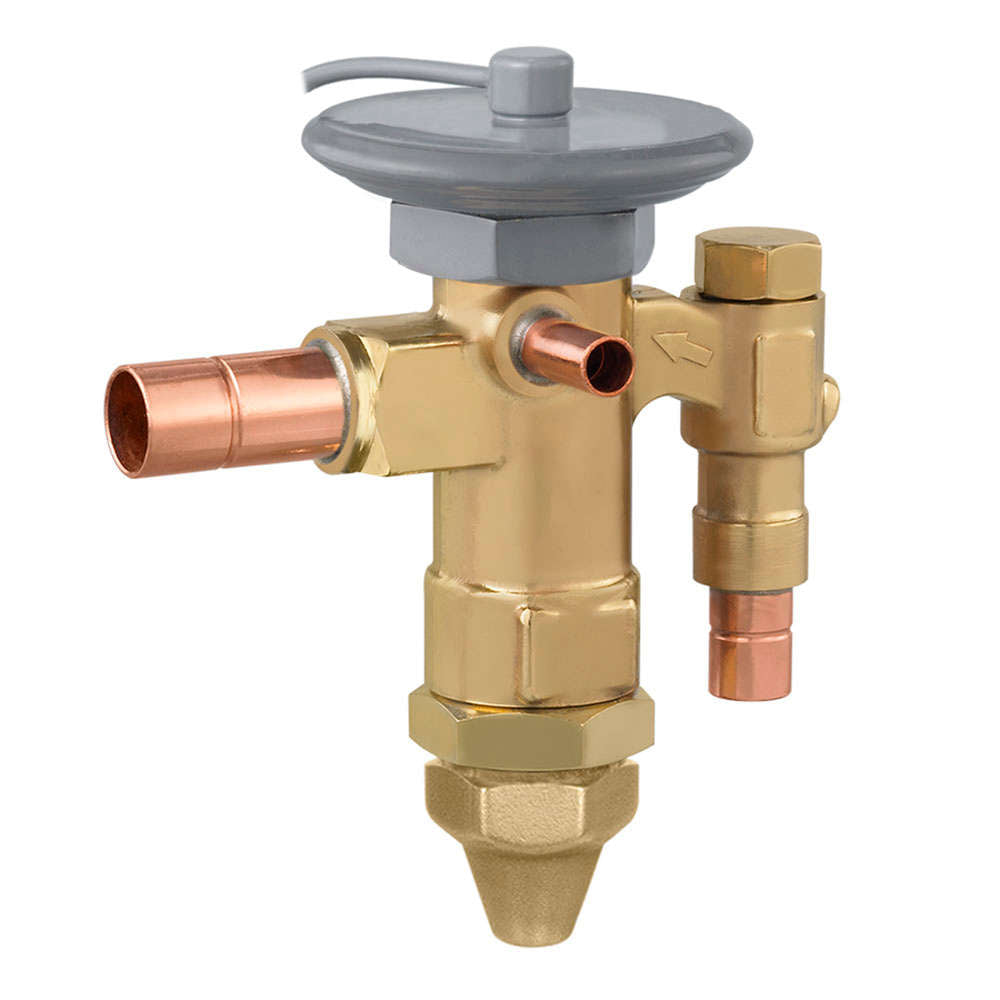

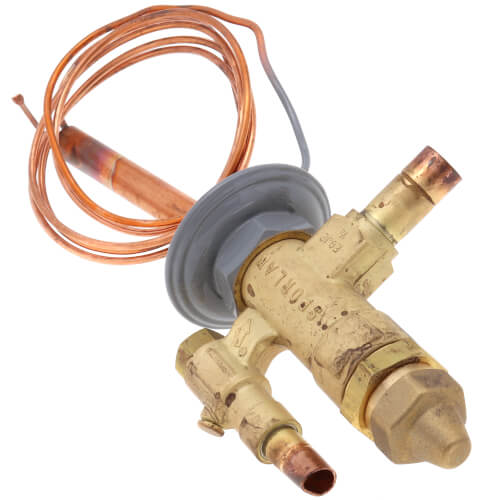

Sporlan Valve 164564 Thermal Expansion Valve R-22 2 Ton 5 foot Capillary

Product Description

The Sporlan Valve 164564 thermal expansion valve is engineered for optimal performance in R-22 refrigeration systems. This valve facilitates efficient operation of commercial refrigeration and air conditioning units by controlling the flow of refrigerants.

• Designed with a 3/8 inch ODF inlet and 1/2 inch ODF outlet.
• Includes a 60 inch capillary length for extended reach.
• Features an externally equalized adjustment to enhance system efficiency.

Product Highlights

This expansion valve is particularly suitable for small refrigeration systems like refrigerated cases, coolers, and freezers, as well as air conditioning units and heat pumps requiring precise refrigerant control.

Product Information

Technical Specifications

• Refrigerant Type: R-22
• Thermostatic Charge: C
• Nominal Capacity: 2 Ton
• Inlet Connection Size: 3/8 inch ODF
• Outlet Connection Size: 1/2 inch ODF
• Equalizer Type: Externally Equalized
• Capillary Length: 60 inches
• Construction Material: Forged Brass
