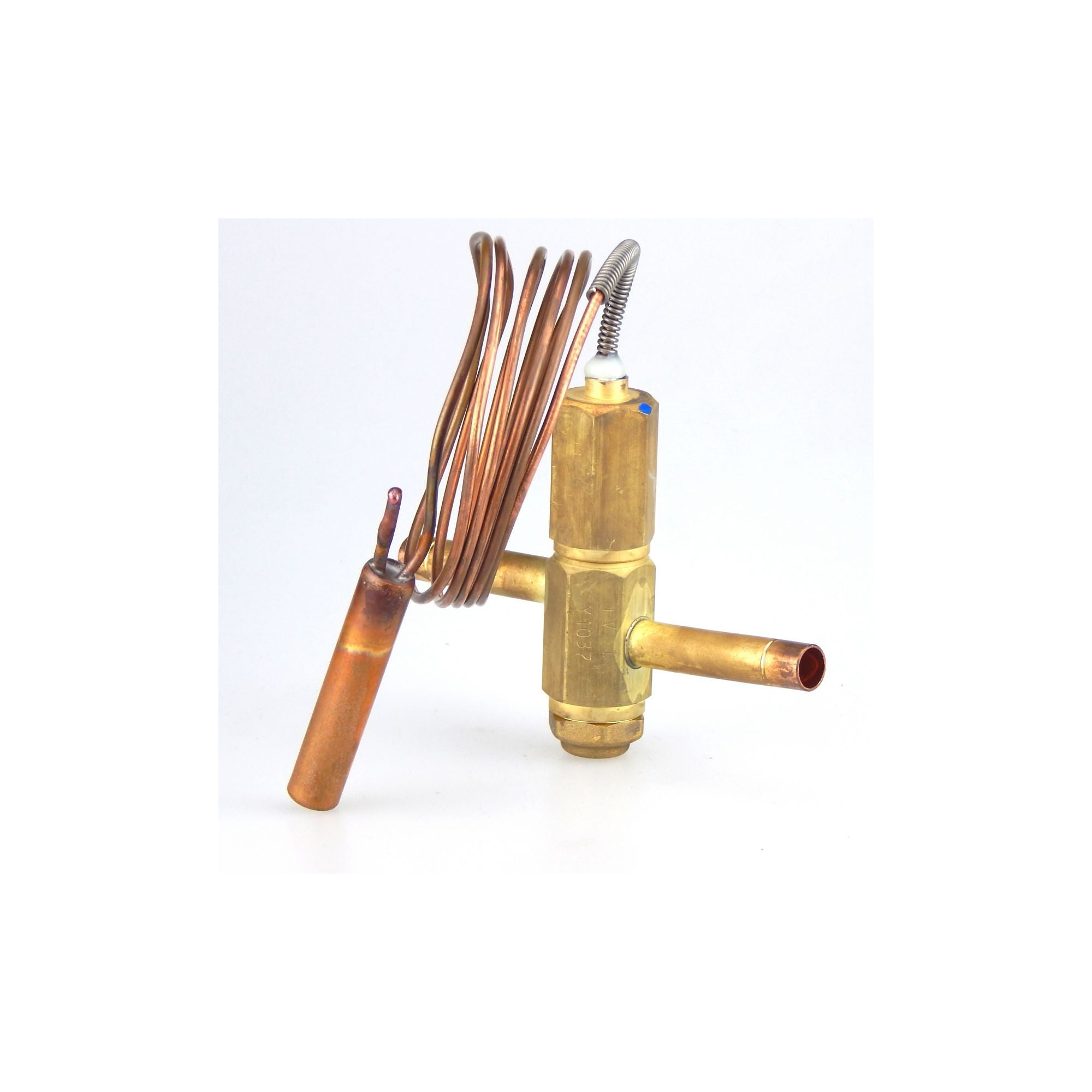

Parker Sporlan 154596 TXV Y1037-FV-1-190 1.0 190 degree Fahrenheit 60 inches 3/8 inch x 3/8 inch ODF

Product Description

The Parker Sporlan 154596 Thermostatic Expansion Valve is engineered for high performance in air conditioning, as well as medium and low temperature refrigeration applications. This component maximizes performance and durability, offering reliable operation under diverse conditions.

• Optimized for a wide range of operating environments.
• Built with long-lasting stainless steel and leak-proof construction.
• Features an adjustable superheat setting for enhanced control.

Product Highlights

Achieve precise control with the balanced port design that maintains alignment and minimizes the influence of pressure changes. Pin and port materials are specially selected for their corrosion and erosion resistance.

Product Information

Standard Information

• Design: Balanced port with stainless steel diaphragm.
• Element Type: Welded, long-lasting structure.

Technical Specifications

• Connections: 3/8 inch ODF.
• Temperature Capacity: Up to 190 degrees Fahrenheit.
• Composition: Brass bar stock body, inlet strainer.
• Refrigerant Compatibility: R-22.
• Adjustability: External superheat adjustment.
• Prop 65: Compliant.
