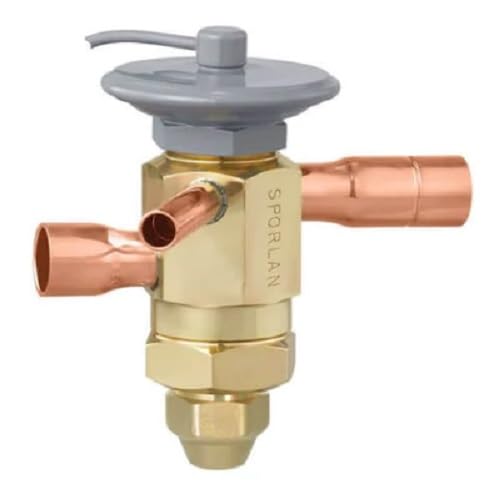

Sporlan 151269 Thermal Expansion Valve 1/2x1/2 Inch R-22 6 Ton 30 Inch Cap

Product Description

The Sporlan 151269 Thermal Expansion Valve is designed to efficiently regulate the flow of refrigerant in air conditioning systems. This valve is compatible with R-22 refrigerant and can handle a capacity of up to six tons, making it a versatile choice for various large-scale cooling applications.

• Robust brass construction ensures long-term durability.
• Features a 30-inch capillary for precise control.
• Incorporates a removable 100 mesh strainer for easy maintenance.

Product Highlights

The valve is equipped with both internal and external equalization options, allowing for flexible installation scenarios. It also includes an internal check valve to prevent reverse flow, thereby safeguarding the system.

Product Information

Standard Information

• Application: Air Conditioning
• Thermostatic Charge: GA

Technical Specifications

• Inlet Size: 1/2 inch ODF
• Outlet Size: 5/8 inch ODF
• Nominal Capacity: 6 Ton
• Refrigerant Type: R-22
• Equalizer: External
• Design Working Pressure: Up to 450 psi
• Capillary Length: 30 inches
