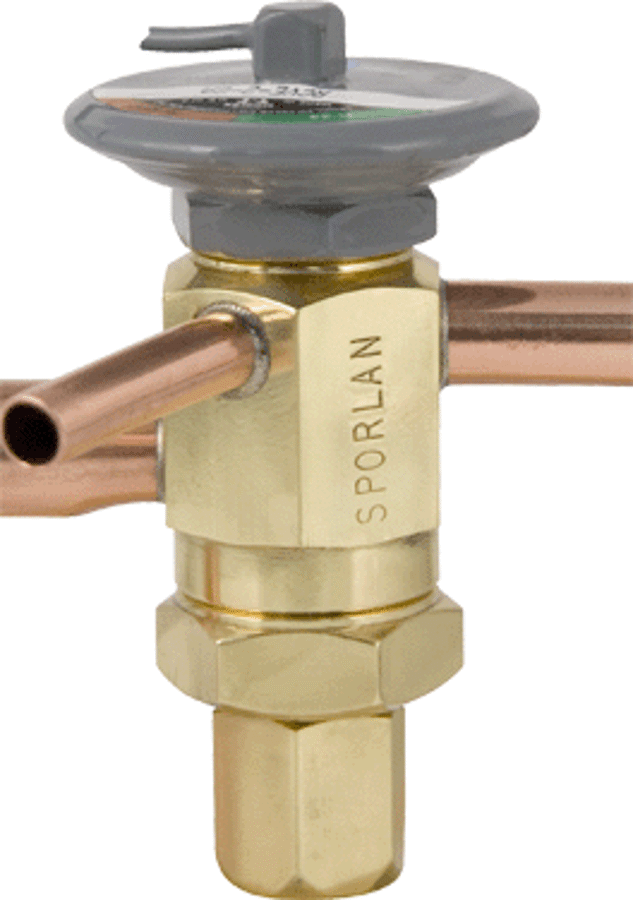

Sporlan 151245 3/8 x 1/2 Inch, ODF x ODF, R-22, 450 PSI, Brass, Externally Adjustable, Balanced Port, Thermostatic Expansion Valve for 3 Ton Air Conditioning Unit/Heat Pump

Product Description

The Sporlan 151245 thermostatic expansion valve is designed for 3 ton air conditioning units and heat pumps. This externally adjustable, balanced port valve, is constructed from brass and can handle refrigerant type R-22.

• ODF x ODF end connections
• 450 PSI pressure rating
• Includes internal check valve

Product Highlights

This Sporlan expansion valve helps control refrigerant flow in air conditioning and heat pump systems. It's designed for optimal performance under a wide range of conditions, making it ideal for both cooling and heating applications. The internal check valve supports reverse flow in heat pump operations.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 151245
• UPC: 68747273097
• UNSPSC: 40141612

Technical Specifications

• Type: Externally Adjustable, Balanced Port
• Nominal Size: 3/8 Inch x 1/2 Inch
• End Connection: ODF x ODF
• Body Material: Brass
• Temperature Rating: 40 Deg F (Evaporator), 100 Deg F (Liquid)
• Pressure Rating: 450 PSI
• Inclusions/Features: Internal Check Valve
• Capillary Tube Length: 30 Inches
• Strainer Type: 100 Mesh Removable
• Filter Element Type: 43
• Application: Air Conditioning, Heat Pump
• Refrigerant Type: R-22
• Thermostatic Charge: GA
• Nominal Capacity: 3 Ton
• Manufacturer Part Number Additional: RCVE-3-GA
