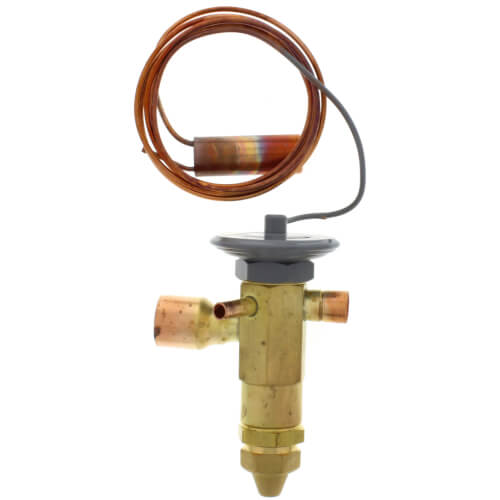

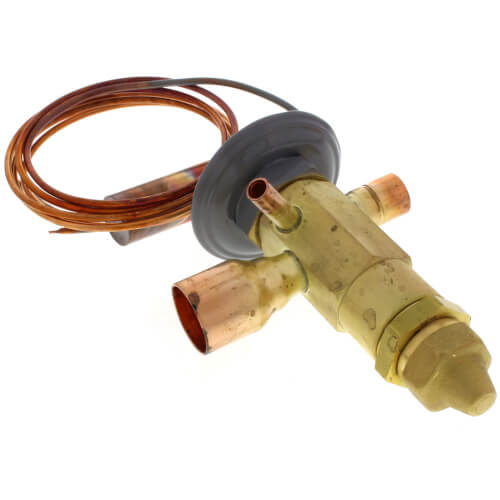

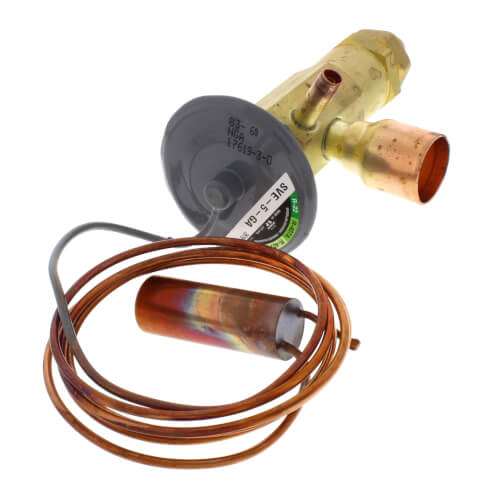

Sporlan 129271 SVE-5-GA 1/2 x 7/8 ODF Thermal Expansion Valve w/ 60 Capillary 5 Ton

Product Description

The Sporlan 129271 SVE-5-GA Thermal Expansion Valve is designed for air conditioning applications. This valve is ideal for systems using R-22 refrigerant and supports a capacity of five tons. It features ODF connections with an inlet size of one-half inch and an outlet size of seven-eighths inch.

• Adjustable superheat setting for optimal performance.
• Includes a 60-inch capillary length for versatile installation.
• Factory tested to ensure reliable, leak-free operation.

Product Highlights

This valve provides permanent inlet straining and is available with either internal or external equalizers. The design working pressure for the valve is 450 psi.

Product Information

Standard Information

• Application: Air Conditioning
• Refrigerant Type: R-22

Technical Specifications

• NOMINAL CAPACITY (TON): 5
• INLET CONNECTION: 1/2 ODF
• OUTLET CONNECTION: 7/8 ODF
• EQUALIZER METHOD: Externally Equalized
• CAPILLARY LENGTH (INCH): 60
• STRAINER TYPE: 12 Mesh Permanent
